SKE10-05
16.55
Details

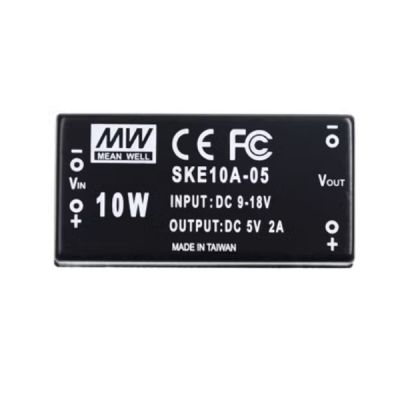

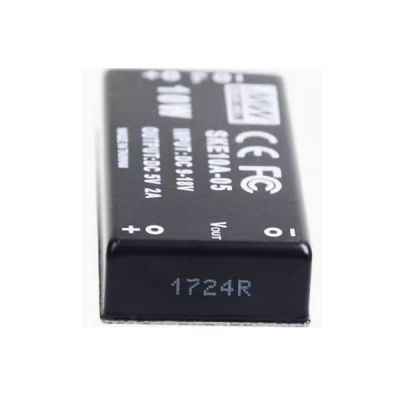

Meanwell SKE10-05 Series Model Specifications
| ORDER NO. | SKE10A-05 | SKE10B-05 | SKE10C-05 | |
| OUTPUT | DC VOLTAGE | 5V | ||
| CURRENT RANGE | 200~2000mA | |||
| RATED POWER | 10W | |||
| RIPPLE & NOISE (max.) | 50mVp-p | |||
| LINE REGULATION | ±0.3% | |||
| LOAD REGULATION | ±0.5% | |||
| VOLTAGE ACCURACY | ±2.0% | |||
| SWITCHING FREQUENCY | 200KHz min. | |||
| INPUT | VOLTAGE RANGE | A: 9~18VDC B: 18~36VDC C: 36~72VDC | ||
| EFFICIENCY (Typ.) | 78.00% | 79.00% | 80.00% | |
| DC CURRENT Full load | A: 1100mA B: 530mA C: 270mA | |||
| DC CURRENT No load | A: 28mA B: 16mA C: 8mA | |||
| FILTER | Pi network | |||
| PROTECTION | Fuse recommended | |||
| PROTECTION | OVER CURRENT | 160%~250% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | All output equipped with short circuit | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +71℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20%~90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -25~+105℃, 10~95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) | |||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY | SAFETY STANDARDS | EAC TP TC 020/2011 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 500Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 50.8*25.4*11.2mm or 2"*1"*0.44" inch (L*W*H) | |||
| PACKING | 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton | |||
Meanwell SKE10-05 Series Features
l 2:1 wide input range
l 4:1 wide input range(option)
l 1500VDC I/O isolation
l 3000VDC I/O isolation (option)
l Built-in EMI filter
l Protections: Short circuit/Overload
l Cooling by free air convection
l Six-sided shield metal case
l 100% burn-in test
l Low cost/High reliability
l Approvals: FCC/EAC/CE/UKCA
l 2 years warranty
Meanwell SKE10-05 Series Mechanical Diagram
