SI06W8
8.51
Details

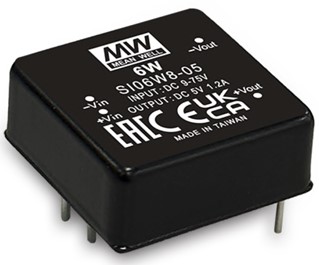

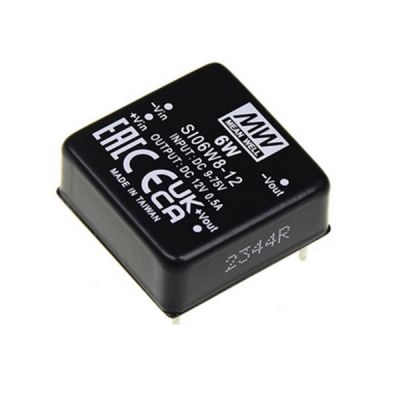

Meanwell SI06W8 Series is a 6W isolated and regulated DC-DC converter. The product outstands module type and DIP 1"x1"package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 86%, wide working temperaturerange -40~+90"C, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, Input under voltage protectionetc. Apart from them, the models account input voltage 9~75V 8:1 ultrawide input range, and various output voltage, 3.3V/5V/9V/12V/15V/24V for single output, and ±5V/±12V/±15V for dual outputs. Considering its longevity, high reliability, and excellent quality, Meanwell SI06W8 Series is suitable forall kinds of systems, such as industrial control, telecommunication field, distributed power architecture,and so on.
Meanwell SI06W8 Series Encoding
| S | Series Name S: Single Output D: Dual Output |
| 106 | Rated Wattage |
| W8 | 8:1 Ultra wide input voltage (9-75Vdc) |
| 12 | Output Voltage ( 3.3/5/9/12/15/24Vdc, ±5/±12/±15Vdc) |
| R | Blank: Non-Remote control ( Standard model) |
| R: Built-in Remote control (Optional Model) |
Meanwell SI06W8 Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SI06W8-03 | Normal 12V,24V,36V,48V,72V(9~75V) | 5mA | 268mA | 3.3V | 0-1500mA | 80.0% | 1800μF |
| SI06W8-05 | 5mA | 309mA | 5V | 0-1200mA | 81.0% | 1000μF | |
| SI06W8-09 | 7mA | 301mA | 9V | 0-667mA | 82.5% | 680μF | |
| SI06W8-12 | 7mA | 300mA | 12V | 0-500mA | 85.0% | 470μF | |
| SI06W8-15 | 8mA | 294mA | 15V | 0~400mA | 86.0% | 220μF | |
| SI06W8-24 | 8mA | 294mA | 24V | 0~250mA | 85.0% | 220μF | |
| INPUT | VOLTAGE RANGE | 9~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 100Vdc | ||||||
| FILTER | Capacitor network | ||||||
| PROTECTION (Typ.) | Fuse recommended. 2A Slow-Blow Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2% | |||||
| RATED POWER | 6W | ||||||
| RIPPLE & NOISE | 100mVp-p | ||||||
| LINE REGULATION | ±0.2% (±0.5% for 3.3Vo) | ||||||
| LOAD REGULATION | ±0.5% | ||||||
| SWITCHING FREQUENCY | 300KHz (PWM) | ||||||
| PROTECTION | SHORT CIRCUIT | 110 ~ 230% rated output power | |||||
| OVERLOAD | 110 ~ 230% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Protection type : Clamp by TVS diode | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 8.8V | ||||||
| Shutdown voltage: 8.5V | |||||||
| FUNCTION | REMOTE CONTROL (OPTIONAL) | Power ON: RC ~ -Vin > 2.5Vdc ~ 6Vdc or open circuit | |||||
| Power OFF: RC ~ -Vin <1Vdc or short | |||||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +105℃ max | ||||||
| WORKING HUMIDITY | 5% ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.05% / ℃ (0 ~ 71℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃ max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1000pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | NA | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class A without external components Class B with external components |
|||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | contact ±4KV | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | ±0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Line-Line±0.5KV | |||||
| Conducted | BS EN/EN61000-4-6 | 3Vrms | |||||
| Magnetic field immunity | BS EN/EN61000-4-8 | 1A/m | |||||
| OTHERS | MTBF | >400Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 25.4*25.4*10.2mm (1*1*0.401 inch) | ||||||
| CASE MATERIAL | Black coated copper with non-conductive base | ||||||
| PACKING | 20g; 10pcs/per tube, 600pcs/60 tube/per carton | ||||||
Meanwell SI06W8 Series Features
l DIP 1"x1" package with industry standard pinout
l 8:1 ultrawide input range
l Operating temperature range -40~+90℃
l No minimum load required
l Comply to BS EN/EN55032 radiated Class A without additional components
l High efficiency up to 86%
l Protections: Short circuit (Continuous)/Overload/Over voltage/Input under voltage
l 3KVDC I/O isolation
l Remote ON/OFF control (optional)
l 3 years warranty
Meanwell SI06W8 Series Applications
l Telecom/Datacom system
l Wireless network
l Industrial control facility
l Instrument
l Analyzer
l Detector
l Data switch
Meanwell SI06W8 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
