SI06W8-24
8.59
Details

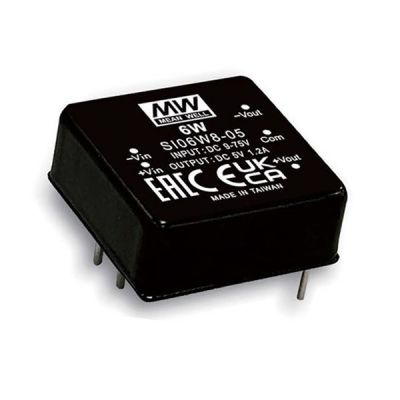

Meanwell SI06W8-24 is a 6W isolated and regulated DC-DC converter with 8mA294mA24V0~250mA. The product stands out with module type and DIP 1"x1"package. Meanwhile, the main features are as following: international standard pins, high efficiency up to 86%, wide working temperaturerange -40~+90℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without extra components, continuous-mode short circuit, overload, Input under voltage protectionetc. Apart from them, the models account input voltage 9~75V 8:1 ultra-wide input range, and various output voltage, 3.3V/5V/9V/12V/15V/24V for single output, and ±5V/±12V/±15V for dual outputs. Because of its longevity, high reliability, and excellent quality, Meanwell SI06W8-24 is suitable forall kinds of systems, such as industrial control, telecommunication field, distributed power architecture,and so on.
Meanwell SI06W8-24 Encoding
| S | Series Name S: Single Output D: Dual Output |
| 106 | Rated Wattage |
| W8 | 8:1 Ultra wide input voltage (9-75Vdc) |
| 24 | Output Voltage ( 3.3/5/9/12/15/24Vdc, ±5/±12/±15Vdc) |
| R | Blank: Non-Remote control ( Standard model) |
| R: Built-in Remote control (Optional Model) |
Meanwell SI06W8-24 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SI06W8-03 | Normal 12V,24V,36V,48V,72V(9~75V) | 5mA | 268mA | 3.3V | 0-1500mA | 80.0% | 1800μF |
| SI06W8-05 | 5mA | 309mA | 5V | 0-1200mA | 81.0% | 1000μF | |
| SI06W8-09 | 7mA | 301mA | 9V | 0-667mA | 82.5% | 680μF | |
| SI06W8-12 | 7mA | 300mA | 12V | 0-500mA | 85.0% | 470μF | |
| SI06W8-15 | 8mA | 294mA | 15V | 0~400mA | 86.0% | 220μF | |
| SI06W8-24 | 8mA | 294mA | 24V | 0~250mA | 85.0% | 220μF | |
| INPUT | VOLTAGE RANGE | 9~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 100Vdc | ||||||
| FILTER | Capacitor network | ||||||
| PROTECTION (Typ.) | Fuse recommended. 2A Slow-Blow Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2% | |||||
| RATED POWER | 6W | ||||||
| RIPPLE & NOISE | 100mVp-p | ||||||
| LINE REGULATION | ±0.2% (±0.5% for 3.3Vo) | ||||||
| LOAD REGULATION | ±0.5% | ||||||
| SWITCHING FREQUENCY | 300KHz (PWM) | ||||||
| PROTECTION | SHORT CIRCUIT | 110 ~ 230% rated output power | |||||
| OVERLOAD | 110 ~ 230% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Protection type : Clamp by TVS diode | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 8.8V | ||||||
| Shutdown voltage: 8.5V | |||||||
| FUNCTION | REMOTE CONTROL (OPTIONAL) | Power ON: RC ~ -Vin > 2.5Vdc ~ 6Vdc or open circuit | |||||
| Power OFF: RC ~ -Vin <1Vdc or short | |||||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +105℃ max | ||||||
| WORKING HUMIDITY | 5% ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.05% / ℃ (0 ~ 71℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃ max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1000pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | NA | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class A without external components Class B with external components |
|||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | contact ±4KV | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | ±0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Line-Line±0.5KV | |||||
| Conducted | BS EN/EN61000-4-6 | 3Vrms | |||||
| Magnetic field immunity | BS EN/EN61000-4-8 | 1A/m | |||||
| OTHERS | MTBF | >400Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 25.4*25.4*10.2mm (1*1*0.401 inch) | ||||||
| CASE MATERIAL | Black coated copper with non-conductive base | ||||||
| PACKING | 20g; 10pcs/per tube, 600pcs/60 tube/per carton | ||||||
Meanwell SI06W8-24 Features
l 3KVDC I/O isolation
l 3 years warranty
l High efficiency up to 86%
l 8:1 ultrawide input range
l No minimum load required
l Remote ON/OFF control (optional)
l Operating temperature range -40~+90℃
l DIP 1"x1" package with industry standard pinout
l Comply to BS EN/EN55032 radiated Class A without additional components
l Protections: Short circuit (Continuous)/Overload/Over voltage/Input under voltage
Meanwell SI06W8-24 Applications
l Telecom/Datacom system
l Wireless network
l Industrial control facility
l Instrument
l Analyzer
l Detector
l Data switch
Meanwell SI06W8-24 Mechanical Diagram
