SGAS60U24-P1J
22.82
Details

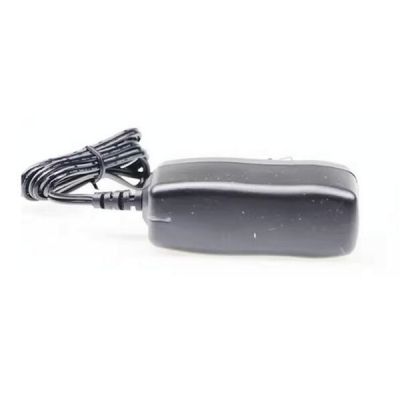

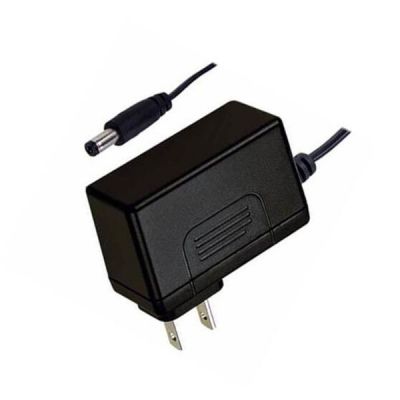

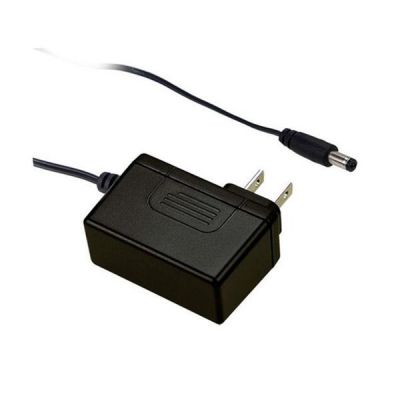

Meanwell SGAS60U24 is a 60W single-output green adaptor with 24V2.5A0-2.5A60W100mVp-p. It stands out with compact, wall-mounted and convenient for carry. The product is a classⅡpower unit (no FG) equipped with standard 2-Pin U.S. plug, input ranging from 90VAC to 264VAC. Meanwhile, SGAS60U24 provides the model with output voltage 24VDC. Thus it could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 90% and extremely low no-load power consumption below 0.15W, Meanwell SGAS60U24 complies with the latest U.S. energy regulation EISA 2007/DoE (LeveI VI). Apart from them, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The item is also approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. In view of its high safety, high reliability and high quality, Meanwell SGAS60U24 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS60U24-P1J Encoding
| SGAS | Series Name |
| 60 | Rated Wattage |
| U | US 2pin AC Plug |
| 24 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS60U24-P1J Specifications
| ORDER NO. | SGAS60U24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS60U24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 2.5A | |
| CURRENT RANGE | 0-2.5A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 2500ms, 50ms, 10ms/230VAC 2500ms, 50ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT | 1.5A / 115VAC 0.75A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 40A / 115VAC 80A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 400Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 75.5*32*47.5mm (L*W*H) | |
| PACKING | 200g ; 60pcs / 13kg / CARTON | |
Meanwell SGAS60U24-P1J Features
l Pass LPS
l 3 years warranty
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Fully enclosed plastic case
l Ultra slim and compact size
l Universal AC input/Full range
l 2 pole USA plug, ClassⅡpower unit
l No load power consumption<0.15W
l 7.5V/9V/18V models available (by request)
l Various DC plug quick adapter accessory available
l Protections: Short circuit/Overload/Over voltage
Meanwell SGAS60U24-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell SGAS60U24-P1J Mechanical Diagram
