SGAS60U15-P1J
22.48
Details

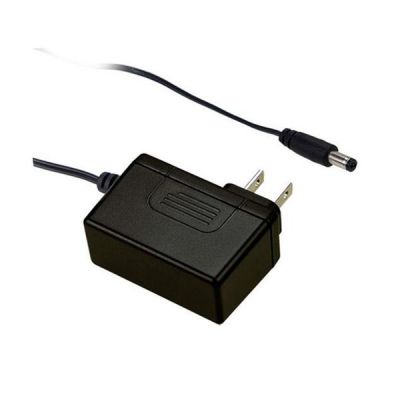

Meanwell SGAS60U15 is a 60W single-output green adaptor with 15V4A0-4A60W80mVp-p. The unit features compact, wall-mounted and convenient for carry. It is a classⅡpower unit (no FG) equipped with standard 2-Pin U.S. plug, input ranging from 90VAC to 264VAC. At the same time, SGAS60U15 provides the model with output voltage 15VDC, Therefore, it could satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 90% and extremely low no-load power consumption below 0.15W, Meanwell SGAS60U15 is compliant with the latest U.S. energy regulation EISA 2007/DoE (LeveI VI). Moreover, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The model is also approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. In light of its high safety, high reliability and high quality, Meanwell SGAS60U15 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS60U15 Encoding
| SGAS | Series Name |
| 60 | Rated Wattage |
| U | US 2pin AC Plug |
| 15 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS60U15 Specifications
| ORDER NO. | SGAS60U15-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS60U15 |
| DC VOLTAGE | 15V | |
| RATED CURRENT | 4A | |
| CURRENT RANGE | 0-4A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 2500ms, 50ms, 10ms/230VAC 2500ms, 50ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT | 1.5A / 115VAC 0.75A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 40A / 115VAC 80A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 400Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 75.5*32*47.5mm (L*W*H) | |
| PACKING | 200g ; 60pcs / 13kg / CARTON | |
Meanwell SGAS60U15 Features
l Pass LPS
l 3 years warranty
l Ultra slim and compact size
l Universal AC input/Full range
l 2 pole USA plug, ClassⅡpower unit
l No load power consumption<0.15W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Fully enclosed plastic case
l 7.5V/9V/18V models available (by request)
l Various DC plug quick adapter accessory available
l Protections: Short circuit/Overload/Over voltage
Meanwell SGAS60U15 Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell SGAS60U15 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
