SGAS60E24-P1J
22.45
Details

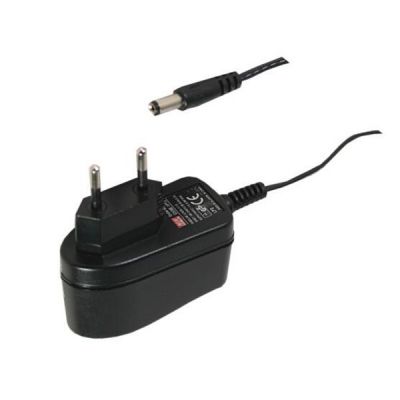

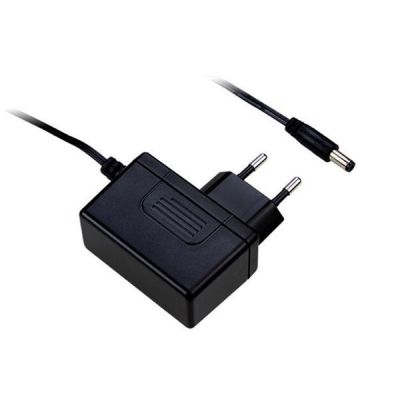

Meanwell SGAS60E24 is a 60W single-output green adaptor with 24V2.5A0-2.5A60W100mVp-p±2.0%±1.0%±2.0%. The item features compact, wall-mounted style and convenient for carry. It is a classⅡpower unit (no FG) with standard 2-Pin European plug. Meanwhile, SGAS60E24 accepts the input range from 90VAC to 264VAC with output voltage 24VDC, so that this could satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 90%, and extremely low no-load power consumption below 0.15W, SGAS60E24 is compliant with EU ErP and 5~48V meet CoC version 5. Furthermore, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The unit is also approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. In view of its high safety, high reliability and high quality, Meanwell SGAS60E24 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS60E24-P1J Encoding
| SGAS | Series Name |
| 60 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 24 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS60E24-P1J Specifications
| ORDER NO. | SGAS60E24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS60E24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 2.5A | |
| CURRENT RANGE | 0-2.5A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 2500ms, 50ms, 10ms/230VAC 2500ms, 50ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT | 1.5A / 115VAC 0.75A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 40A / 115VAC 80A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 400Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 75.5*32*47.5mm (L*W*H) | |
| PACKING | 208g ; 60pcs / 13.5kg / CARTON | |
Meanwell SGAS60E24-P1J Features
l Pass LPS
l 3 years warranty
l Fully enclosed plastic case
l Ultra slim and compact size
l Universal AC input/Full range
l Energy efficiency Level VI
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption < O.15W
l Comply with EU ErP and meet CoC version 5
l Protections: Short circuit/Overload/Over voltage
l 7.5V/9V/18V models available (by request)
l Various DC plug quick adapter accessory available
Meanwell SGAS60E24-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l Power sourcing equipment of PoE
Meanwell SGAS60E24-P1J Mechanical Diagram
