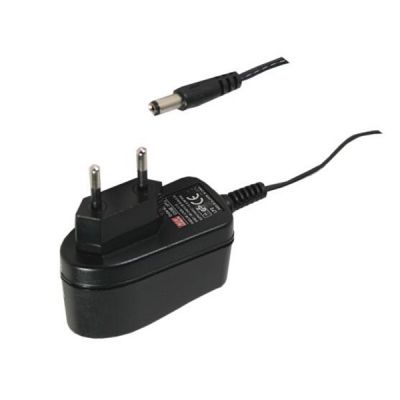

Meanwell SGAS60E Series is a 60W wall-mounted style single-output green adaptor. The product is compact and convenient for carry. It is a classⅡpower unit (no FG) equipped with the standard 2-Pin European plug, and accepts input range from 90VAC to 264VAC. At the same time, SGAS60E provides different models with output voltages ranging between 5VDC and 48VDC, so that this could satisfy the demands for various types of consumer electronic devices. In addition, the efficiency reaches high up to 90% and extremely low no-load power consumption below 0.15W, SGAS60E series is compliant with EU ErP and 5~48V meet CoC version 5. The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. Apart from them, the product is approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. Considering its high safety, high reliability and high quality, Meanwell SGAS60E Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS60E Series Encoding
| SGAS | Series Name |
| 60 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 5 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS60E Series Model Specifications
| ORDER NO. | SGAS60E05-P1J | SGAS60E12-P1J | SGAS60E15-P1J | SGAS60E24-P1J | SGAS60E48-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS60E05 | SGAS60E12 | SGAS60E15 | SGAS60E24 | SGAS60E48 |
| DC VOLTAGE | 5V | 12V | 15V | 24V | 48V | |
| RATED CURRENT | 6A | 5A | 4A | 2.5A | 1.25A | |
| CURRENT RANGE | 0-6A | 0-5A | 0-4A | 0-2.5A | 0-1.25A | |
| RATED POWER | 30W | 60W | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 120mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 2500ms, 50ms, 10ms/230VAC 2500ms, 50ms, 10ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 85.00% | 88.00% | 88.00% | 89.00% | 90.00% | |
| AC CURRENT | 1.5A / 115VAC 0.75A / 230VAC | |||||
| INRUSH CURRENT (max.) | Cold start 40A / 115VAC 80A / 230VAC | |||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |||||
| Protection type : Clamp by zener diode, output short | ||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted emission | BS EN/EN55032(CISPR32) | Class B | ||||
| Radiated emission | BS EN/EN55032(CISPR32) | Class B | ||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | ||||
| EMC IMMUNITY | Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||
| EFT bursts | BS EN/EN61000-4-4 | Level2, 1KV | ||||
| Surge susceptibility | BS EN/EN61000-4-6 | Level 3, 1KV/L-N | ||||
| Conducted susceptibility | BS EN/EN61000-4-5 | Level2, 3V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 1, 1A/m | ||||
| Voltage dips, interruption | BS EN/EN61000-4-11 | > 95% dip 0. 5 periods, 30% dip 25 periods, | ||||
| > 95% interruptions 250 periods | ||||||
| Others | Life | 3 years : 100% load 40℃, 12hours / day | ||||
| MTBF | 400Khrs min. MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 75.5*32*47.5mm (L*W*H) | |||||
| PACKING | 208g ; 60pcs / 13.5kg / CARTON | |||||
Meanwell SGAS60E Series Features
l Ultra slim and compact size
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption < O.15W
l Energy efficiency Level VI
l Comply with EU ErP and meet CoC version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l 7.5V/9V/18V models available (by request)
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell SGAS60E Series Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l Power sourcing equipment of PoE

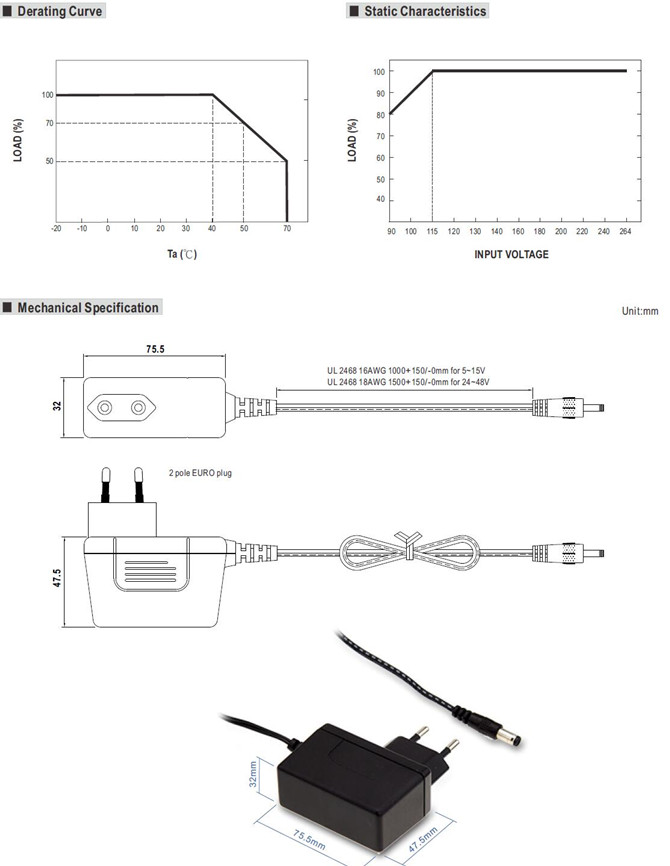

Meanwell SGAS60E Series Mechanical Diagram
