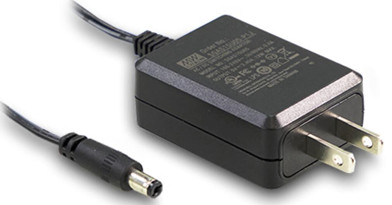

Meanwell SGAS15U Series is a 15W highly reliable wall-mounted style green adaptor. The product features compact size and single-output, which is convenient for carry. SGAS15U is a classⅡpower unit (no FG), equipped with standard 2-Pin U.S. plug, and accepts input range from 90VAC to 264VAC. The entire series provides different models with output voltages ranging between 5VDC and 24VDC, so that it can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, SGAS15U complies with the latest U. S. energy regulation EISA 2007/DoE (LeveI VI). Apart from them, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The unit is approved for international safety regulations. Moreover, it adopts the 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. Considering its high safety, high reliability and high quality, Meanwell SGAS15U Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS15U Series Encoding
| SGAS | Series Name |
| 15 | Rated Wattage |
| U | US 2pin AC Plug |
| 5 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS15U Series Model Specifications
| ORDER NO. | SGAS15U05-P1J | SGAS15U09-P1J | SGAS15U12-P1J | SGAS15U15-P1J | SGAS15U24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS15U05 | SGAS15U09 | SGAS15U12 | SGAS15U15 | SGAS15U24 |
| DC VOLTAGE | 5V | 9V | 12V | 15V | 24V | |
| RATED CURRENT | 2.40A | 1.66A | 1.25A | 1.00A | 0.625A | |
| CURRENT RANGE | 0-2.4A | 1-1.66A | 0-1.25A | 0-1.00A | 0-0.625A | |
| RATED POWER | 12W | 15W | 15W | 15W | 15W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 3000ms, 50ms, 10ms at full load | |||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 79.00% | 84.00% | 85.00% | 85.00% | 86.00% | |
| AC CURRENT | 0.4A / 100VAC | |||||
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 50A / 230VAC | |||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 250% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | >120% rated output voltage | |||||
| Protection type : Clamp by zener diode | ||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | ||||
| Radiated emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | ||||
| Others | Life | 3 years : 100% load 40℃, 12hours / day | ||||
| MTBF | 507Khrs min. MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 57.6*42.1*24.7mm (L*W*H) | |||||
| PACKING | 120g ; 72pcs / 10Kg / CARTON | |||||
Meanwell SGAS15U Series Features
l Extreme small and space-saving, takes up one spot on power strip
l Universal AC input/Full range
l 2 pole USA plug, ClassⅡ power unit
l No load power consumption<0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l 7.5V/18V/48V models available (by request)
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell SGAS15U Series Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices

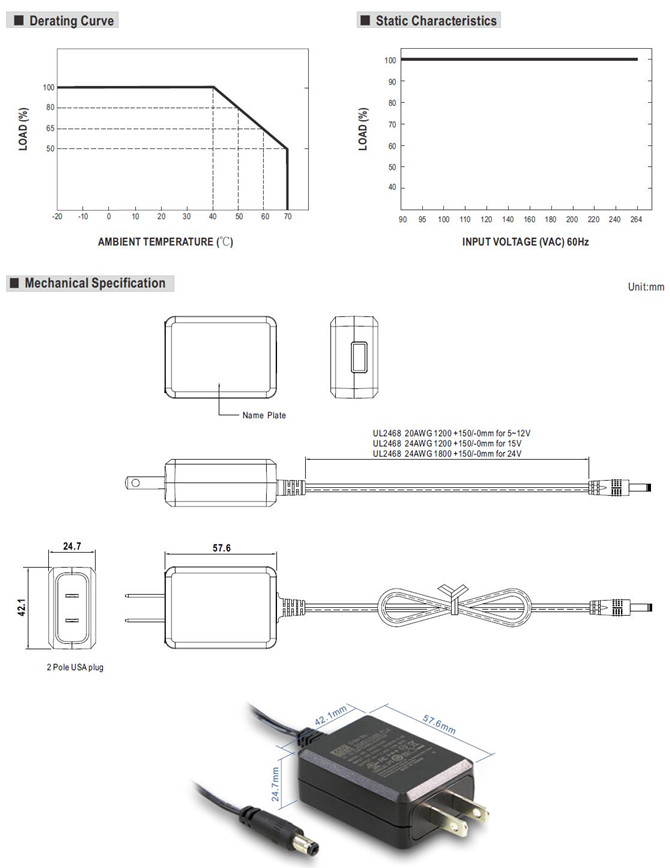

Meanwell SGAS15U Series Mechanical Diagram
