SGAS15E15-P1J
10.94
Details

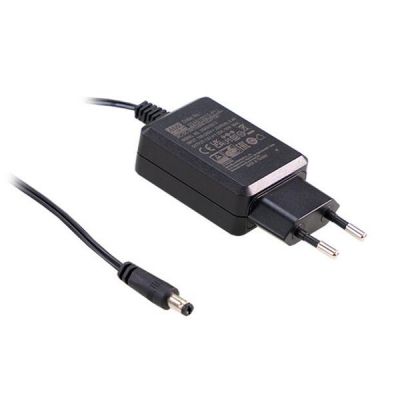

Meanwell SGAS15E15 is a 15W highly reliable single- output green adaptor with 15V1.00A0-1.00A15W80mVp-p. The unit is designed compact size, wall-mounted and convenient for carry. It is a classⅡpower unit (no FG) equipped with standard 2-Pin European plug. SGAS15E15 accepts the input range from 90VAC to 264VAC with output voltage 15VDC, so that this can satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, SGAS15E15 is compliant with EU ErP and meet CoC version 5. In addition, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The model is approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. In view of its high safety, high reliability and high quality, Meanwell SGAS15E15 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS15E15-P1J Encoding
| SGAS | Series Name |
| 15 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 15 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS15E15-P1J Specifications
| ORDER NO. | SGAS15E15-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS15E15 |
| DC VOLTAGE | 15V | |
| RATED CURRENT | 1.00A | |
| CURRENT RANGE | 0-1.00A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 3000ms, 50ms, 10ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT | 0.4A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 250% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 507Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 57.6*42.1*24.7mm (L*W*H) | |
| PACKING | 130g ; 72pcs / 11Kg / CARTON | |
Meanwell SGAS15E15-P1J Features
l Pass LPS
l 3 years warranty
l Energy efficiency Level VI
l Fully enclosed plastic case
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption<0.075W
l Comply with EU ErP and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l 7.5V/18V/48V models available (by request)
l Various DC plug quick adapter accessory available
l Extreme small and space-saving, takes up one spot on power strip
Meanwell SGAS15E15-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell SGAS15E15-P1J Mechanical Diagram
