SGAS15E
10.05
Details

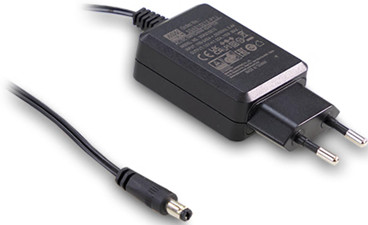

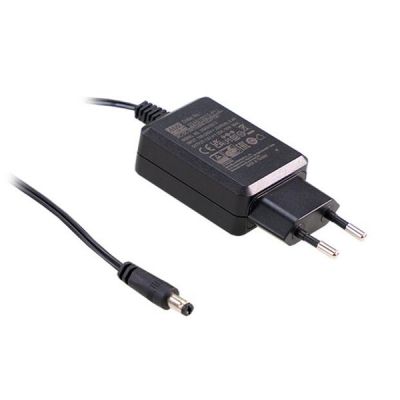

Meanwell SGAS15E Series is a 15W highly reliable single- output green adaptor, whichis compact, wall-mounted and convenient for carry. It is a classⅡ power unit (no FG), equipped with standard 2-Pin European plug, and accepts the input range from 90VAC to 264VAC. At the same time, the entire series provides different models with output voltages ranging between 5VDC and 24VDC, so that this can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, SGAS15E is compliant with EU ErP and meet CoC version 5. Apart from them, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The product is also approved for international safety regulations. Moreover, SGAS15E adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Considering its high safety, high reliability and high quality, Meanwell SGAS15E Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS15E Series Encoding
| SGAS | Series Name |
| 15 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 5 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS15E Series Model Specifications
| ORDER NO. | SGAS15E05-P1J | SGAS15E09-P1J | SGAS15E12-P1J | SGAS15E15-P1J | SGAS15E24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS15E05 | SGAS15E09 | SGAS15E12 | SGAS15E15 | SGAS15E24 |
| DC VOLTAGE | 5V | 9V | 12V | 15V | 24V | |
| RATED CURRENT | 2.40A | 1.66A | 1.25A | 1.00A | 0.625A | |
| CURRENT RANGE | 0-2.4A | 1-1.66A | 0-1.25A | 0-1.00A | 0-0.625A | |
| RATED POWER | 12W | 15W | 15W | 15W | 15W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 3000ms, 50ms, 10ms at full load | |||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 79.00% | 84.00% | 85.00% | 85.00% | 86.00% | |
| AC CURRENT | 0.4A / 100VAC | |||||
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 250% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | >120% rated output voltage | |||||
| Protection type : Clamp by zener diode | ||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted emission | BS EN/EN55032(CISPR32) | Class B | ||||
| Radiated emission | BS EN/EN55032(CISPR32) | Class B | ||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | ||||
| EMC IMMUNITY | Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||
| EFT bursts | BS EN/EN61000-4-4 | Level2, 1KV | ||||
| Surge susceptibility | BS EN/EN61000-4-6 | Level 3, 1KV/L-N | ||||
| Conducted susceptibility | BS EN/EN61000-4-5 | Level2, 3V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 1, 1A/m | ||||
| Voltage dips, interruption | BS EN/EN61000-4-11 | > 95% dip 0. 5 periods, 30% dip 25 periods, > 95% interruptions 250 periods |
||||
| Others | Life | 3 years : 100% load 40℃, 12hours / day | ||||
| MTBF | 507Khrs min. MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 57.6*42.1*24.7mm (L*W*H) | |||||
| PACKING | 130g ; 72pcs / 11Kg / CARTON | |||||
Meanwell SGAS15E Series Features
l Extreme small and space-saving, takes up one spot on power strip
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption<0.075W
l Energy efficiency Level VI
l Comply with EU ErP and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l 7.5V/18V/48V models available (by request)
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell SGAS15E Series Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices

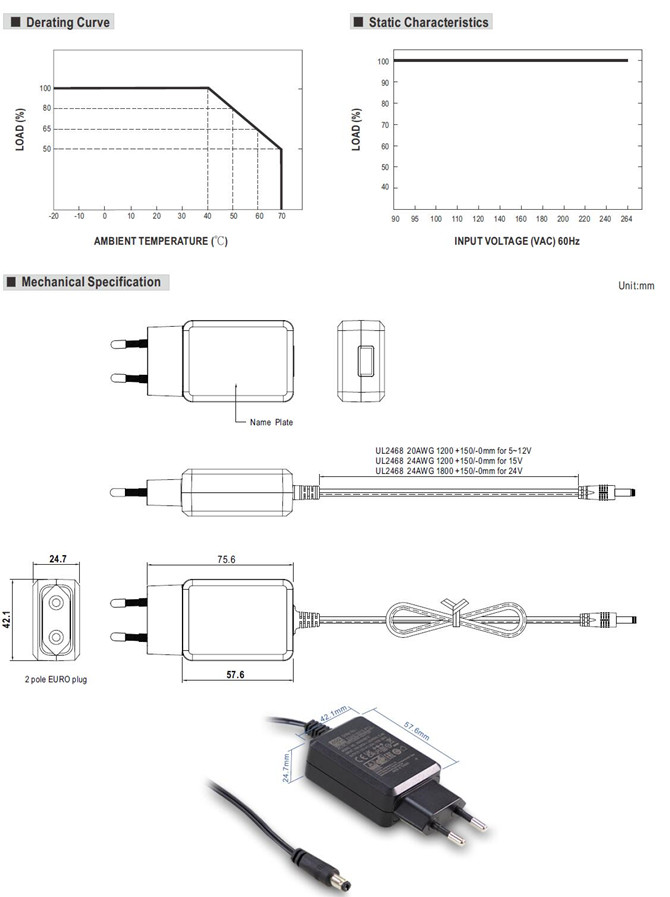

Meanwell SGAS15E Series Mechanical Diagram
