SGAS15B12-P1J
13.01
Details

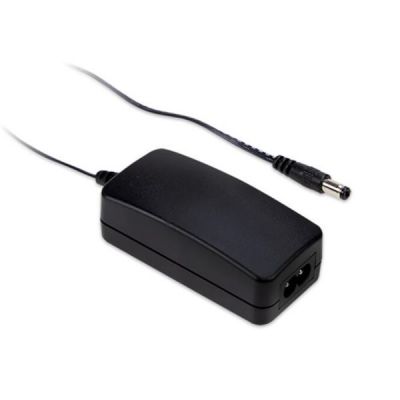

Meanwell SGAS15B12-P1J is a 15W desktop style single-output green adaptor with 12V1.25A0-1.25A15W80mVp-p. The product outstands compact, highly reliable, and convenient for carry. It is a class I power unit (no FG) with the standard IEC320-C8 AC inlet, and accepts the input ranging from 90VAC to 264VAC. Furthermore, the model offers output voltages 12VDC, which can satisfy the demands for various types of consumer electronic devices. What’s more, the efficiency reaches high up to 86% and the extremely low no-load power consumption below 0.075W. SGAS15B12 complies with USA EISA 2007DoE, EU ErP, and meet Code of Conduct (CoC) Version 5. Apart from them, the supreme feature allows the adaptor to save the energy when it is under either operating mode or standby mode. The item is also approved for international safety regulations. Meanwell SGAS15B12-P1J adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
Meanwell SGAS15B12-P1J Encoding
| SGAS | Series Name |
| 15 | Rated Wattage |
| B | IEC320-C8 AC Inlet |
| 12 | Output Voltage |
| P1J | DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type |
| DC Plug Type Other options available by customer requested |
Meanwell SGAS15B12-P1J Specifications
| ORDER NO. | SGAS15B12-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS15B12 |
| DC VOLTAGE | 12V | |
| RATED CURRENT | 1.25A | |
| CURRENT RANGE | 0-1.25A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 3000ms, 50ms, 10ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 135 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT | 0.4A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 250% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 , TUV B NO. 62368-1 S EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | LIFE | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 507Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 80*39*27.7mm (L*W*H) | |
| PACKING | 130g ; 72pcs / 11Kg / CARTON | |
Meanwell SGAS15B12-P1J Features
l Pass LPS
l Extreme small
l 3 years warranty
l Universal AC input/Full range
l Energy efficiency Level VI
l Fully enclosed plastic case
l 2 pole AC inlet lEC320-C8, Class I power unit
l No load power consumption<0.075W
l Protections: Short circuit/Overload/Over voltage
l 7.5V 1 18V 148V models available (by request)
l Various DC plug quick adapter accessory available
l Comply with EISA 2007/DoE, EU ErP and meet CoC Version 5
Meanwell SGAS15B12-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
Meanwell SGAS15B12-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
