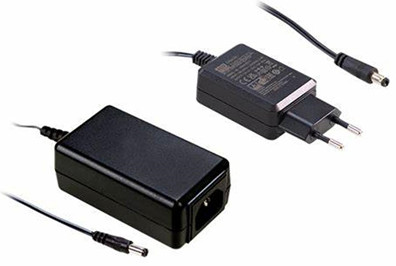

Meanwell SGAS15B Series is a 15W desktop style single-output green adaptor. It highlights compact, highly reliable, and convenient for carry. The product is a class I power unit (no FG) equipped with the standard IEC320-C8 AC inlet, and accepts the input range from 90VAC to 264VAC. At the same time, the entire series provides different models with output voltages ranging between 5VDC and 24VDC, which can satisfy the demands for various types of consumer electronic devices. The efficiency reaches high up to 86% and the extremely low no-load power consumption below 0.075W. In addition, SGAS15B complies with USA EISA 2007DoE, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is under either operating mode or standby mode. The item is also approved for international safety regulations. Meanwell SGAS15B Series adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
Meanwell SGAS15B Series Encoding
| SGAS | Series Name |
| 15 | Rated Wattage |
| B | IEC320-C8 AC Inlet |
| 5 | Output Voltage |
| P1J | DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type |
| DC Plug Type Other options available by customer requested |
Meanwell SGAS15B Series Model Specifications
| ORDER NO. | SGAS15B05-P1J | SGAS15B09-P1J | SGAS15B12-P1J | SGAS15B15-P1J | SGAS15B24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS15B05 | SGAS15B09 | SGAS15B12 | SGAS15B15 | SGAS15B24 |
| DC VOLTAGE | 5V | 9V | 12V | 15V | 24V | |
| RATED CURRENT | 2.40A | 1.66A | 1.25A | 1.00A | 0.625A | |
| CURRENT RANGE | 0-2.40A | 0-1.66A | 0-1.25A | 0-1.00A | 0-0.625A | |
| RATED POWER | 12W | 15W | 15W | 15W | 15W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 3000ms, 50ms, 10ms at full load | |||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 135 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 79.00% | 84.00% | 85.00% | 85.00% | 86.00% | |
| AC CURRENT | 0.4A / 100VAC | |||||
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 250% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | >120% rated output voltage | |||||
| Protection type : Clamp by zener diode | ||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 , TUV B NO. 62368-1 S EN/EN62368-1 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted emission | BS EN/EN55032(CISPR32)FCC PART 15 /CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | ||||
| Radiated emission | BS EN/EN55032(CISPR32)FCC PART 15 /CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | ||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | ||||
| EMC IMMUNITY | Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||
| EFT bursts | BS EN/EN61000-4-4 | Level 2, 1KV | ||||
| Surge susceptibility | BS EN/EN61000-4-6 | Level 3, 1KV/L-N 2KV/L,N-PE | ||||
| Conducted susceptibility | BS EN/EN61000-4-5 | Level 2, 3V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 1, 1A/m | ||||
| Voltage dips , interruption | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||
| Others | LIFE | 3 years : 100% load 40℃, 12hours / day | ||||
| MTBF | 507Khrs min. MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 80*39*27.7mm (L*W*H) | |||||
| PACKING | 130g ; 72pcs / 11Kg / CARTON | |||||
Meanwell SGAS15B Series Features
l Extreme small
l Universal AC input/ Full range
l 2 pole AC inlet lEC320-C8, Class I power unit
l No load power consumption<0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE, EU ErP and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l 7.5V 1 18V 148V models available (by request)
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell SGAS15B Series Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment

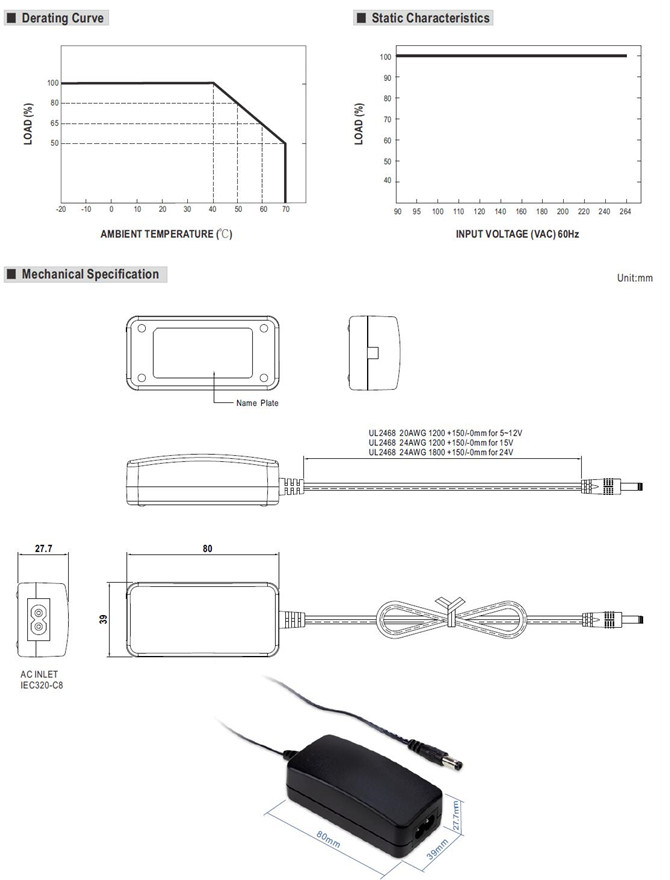

Meanwell SGAS15B Series Mechanical Diagram
