SGAS15A24-P1J
13.93
Details

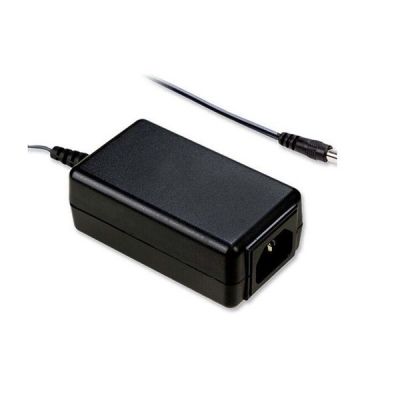

Meanwell SGAS15A24-P1J is a 15W desktop style single-output green adaptor with 24V0.625A0-0.625A15W100mVp-p. It highlights compact, highly reliable and convenient for carry. The product is a classⅠpower unit (with FG) with standard IEC320-C14 AC inlet and accepts the input from 90VAC to 264VAC. SGAS15A24 offers output voltages 24VDC, which can meet the demands for various types of consumer electronic devices. In addition, the efficiency reaches high up to 86%, and extremely low no-load power consumption below 0.075W. Moreover, SGAS15A24 complies with USA EISA 2007/DoE, EU ErP, and meets Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is under either operating mode or standby mode. Meanwell SGAS15A24- P1J is approved for international safety regulations, and adopts 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
Meanwell SGAS15A24-P1J Specifications
| ORDER NO. | SGAS15A24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS15A24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 0.625A | |
| CURRENT RANGE | 0-0.625A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 3000ms, 50ms, 10ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT | 0.4A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 250% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC , I/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | LIFE | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 507Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 85.7*50.9*33.8mm (L*W*H) | |
| PACKING | 150g ; 90pcs / 14Kg / CARTON | |
Meanwell SGAS15A24-P1J Features
l Pass LPS
l Extreme small
l 3 years warranty
l Fully enclosed plastic case
l Energy efficiency Level VI
l Universal AC input/ Full range
l No load power consumption<0.075W
l 3pole AC inlet IEC320-C14, ClassⅠpower unit
l Protections: Short circuit/Overload/Over voltage
l 7.5V1 18V 1 48V models available (by request)
l Various DC plug quick adapter accessory available
l Comply with EISA 2007/DoE, EU ErP and meet CoC Version 5
Meanwell SGAS15A24-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
Meanwell SGAS15A24-P1J Mechanical Diagram
