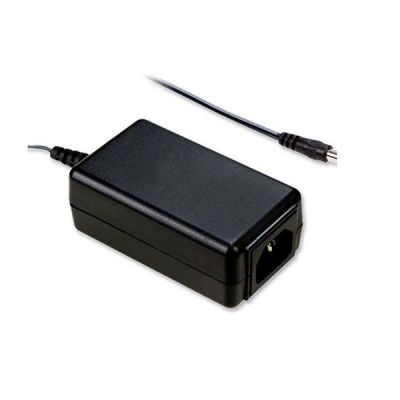

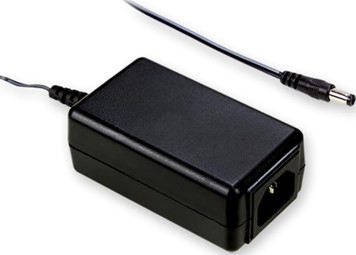

Meanwell SGAS15A Series is a 15W desktop style single-output green adaptor. The product highlights compact, highly reliable and convenient for carry. It is a classⅠpower unit (with FG) with the standard IEC320-C14 AC inlet and accepting the input range from 90VAC to 264VAC. At the same time, SGAS15A Series provides different models with output voltages ranging between 5VDC and 24VDC, which can satisfy the demands for various types of consumer electronic devices. The efficiency reaches high up to 86%, and extremely low no-load power consumption below 0.075W. What’s more, SGAS15A is compliant with USA EISA 2007/DoE, EU ErP, and meets Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is under either operating mode or standby mode. Furthermore, Meanwell SGAS15A Series is approved for international safety regulations, and adopts 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
Meanwell SGAS15A Series Model Specifications
| ORDER NO. | SGAS15A05-P1J | SGAS15A09-P1J | SGAS15A12-P1J | SGAS15A15-P1J | SGAS15A24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS15A05 | SGAS15A09 | SGAS15A12 | SGAS15A15 | SGAS15A24 |
| DC VOLTAGE | 5V | 9V | 12V | 15V | 24V | |
| RATED CURRENT | 2.40A | 1.66A | 1.25A | 1.00A | 0.625A | |
| CURRENT RANGE | 0-2.40A | 0-1.66A | 0-1.25A | 0-1.00A | 0-0.625A | |
| RATED POWER | 12W | 15W | 15W | 15W | 15W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 3000ms, 50ms, 10ms at full load | |||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 79.00% | 84.00% | 85.00% | 85.00% | 86.00% | |
| AC CURRENT | 0.4A / 100VAC | |||||
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 250% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | >120% rated output voltage | |||||
| Protection type : Clamp by zener diode | ||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC , I/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted emission | BS EN/EN55032(CISPR32)FCC PART 15 /CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | ||||
| Radiated emission | BS EN/EN55032(CISPR32)FCC PART 15 /CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | ||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | ||||
| EMC IMMUNITY | Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||
| EFT bursts | BS EN/EN61000-4-4 | Level 2, 1KV | ||||
| Surge susceptibility | BS EN/EN61000-4-6 | Level 3, 1KV/L-N 2KV/L,N-PE | ||||
| Conducted susceptibility | BS EN/EN61000-4-5 | Level 2, 3V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 1, 1A/m | ||||
| Voltage dips , interruption | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||
| Others | LIFE | 3 years : 100% load 40℃, 12hours / day | ||||
| MTBF | 507Khrs min. MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 85.7*50.9*33.8mm (L*W*H) | |||||
| PACKING | 150g ; 90pcs / 14Kg / CARTON | |||||
Meanwell SGAS15A Series Features
l Extreme small
l Universal AC input/ Full range
l 3pole AC inlet IEC320-C14,Class I power unit
l No load power consumption<0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE, EU ErP and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l 7.5V1 18V 1 48V models available (by request)
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell SGAS15A Series Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment

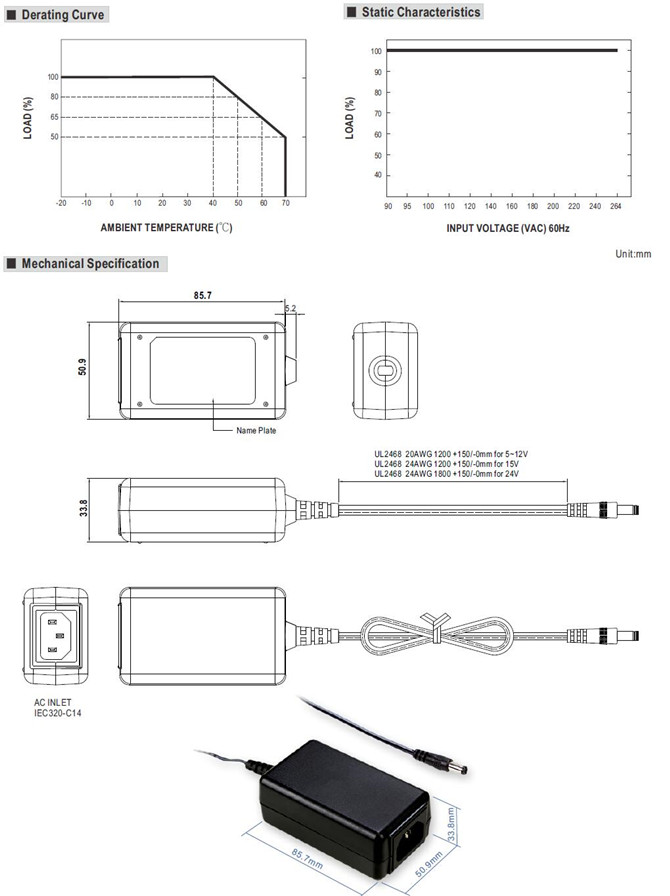

Meanwell SGAS15A Series Mechanical Diagram
