SGAS06U48-P1J
9.48
Details

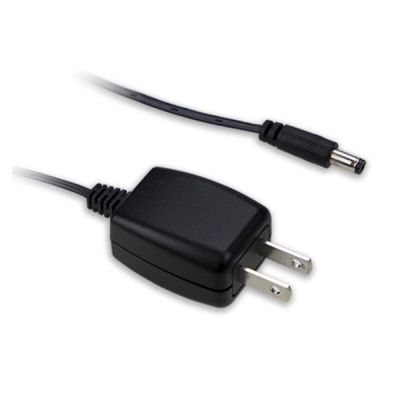

Meanwell SGAS06U48 is a 6W compact size highly reliable green adaptor with 48V0.125A0-0.125A6W80mVp-p. The product outstands single-output and wall-mounted style, which is very convenient for carry. It is a classⅡpower unit (no FG) with standard 2-Pin U.S. plug, accepting input range from 90VAC to 264VAC. At the same time, SGAS06U48 provides the model with output voltages 48VDC. Therefore, this could meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 84% and extremely low no-load power consumption below 0.1W, SGAS06U48 complies with latest U.S. energy regulation EISA 2007/DoE (Level VI). Additionally, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The item is also approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, so that it can effectively prevent users from electric hazards. Due to its high safety, high reliability and high quality, Meanwell SGAS06U48 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS06U48-P1J Encoding
| SGAS | Series Name |
| 6 | Rated Wattage |
| U | US 2pin AC Plug |
| 48 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS06U48-P1J Specifications
| ORDER NO. | SGAS06U48-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS06U48 |
| DC VOLTAGE | 48V | |
| RATED CURRENT | 0.125A | |
| CURRENT RANGE | 0-0.125A | |
| RATED POWER | 6W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 5ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT | 0.2A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 885Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 41.8*32.8*23.8mm (L*W*H) | |
| PACKING | 70g ; 150pcs / 12Kg / CARTON | |
Meanwell SGAS06U48-P1J Features
l Pass LPS
l 3 years warranty
l Fully enclosed plastic case
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Universal AC input/Full range
l 18V model available (by request)
l 2 pole US plug, ClassⅡpower unit
l No load power consumption<0.1 W
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
l Extreme small and space-saving, takes up one spot on power strip
Meanwell SGAS06U48-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell SGAS06U48-P1J Mechanical Diagram
