SGAS06U07-P1J
9.06
Details

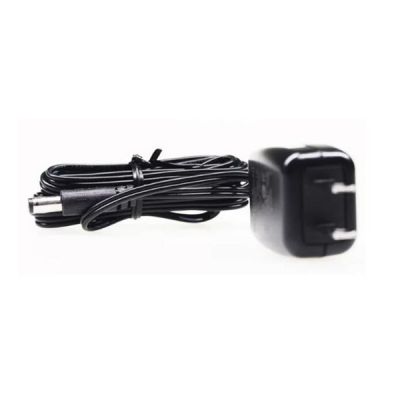

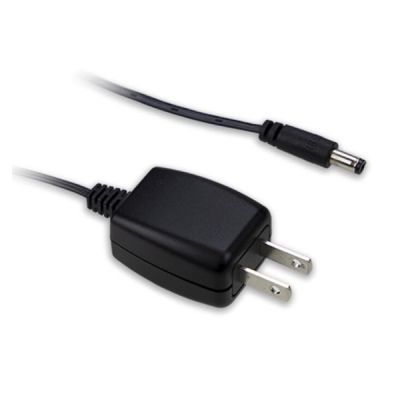

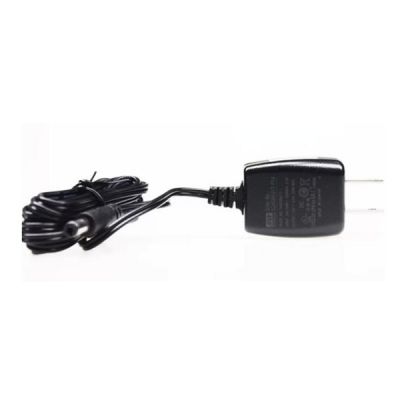

Meanwell SGAS06U07 is a 6W highly reliable wall-mounted style green adaptor with 7.5V0.8A0-0.8A6W85mVp-p. The unit outstands compact size and single-output, which is very convenient for carry. It is a classⅡ power unit (no FG), equipped with standard 2-Pin U.S. plug, accepting input range from 90VAC to 264VAC. At the same time, SGAS06U07 provides the model with output voltages 7VDC. Therefore, this can meet the demands for various types of consumer electronic devices. With the efficiency reaching up to 84% and extremely low no-load power consumption below 0.1W, Meanwell SGAS06U07 complies with latest U.S. energy regulation EISA 2007/DoE(Level VI). Moreover, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The model is also approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, so that it can effectively prevent users from electric hazards. Thanks to its high safety, high reliability and high quality, Meanwell SGAS06U07 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS06U07-P1J Encoding
| SGAS | Series Name |
| 6 | Rated Wattage |
| U | US 2pin AC Plug |
| 7 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS06U07-P1J Specifications
| ORDER NO. | SGAS06U07-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS06U07 |
| DC VOLTAGE | 7.5V | |
| RATED CURRENT | 0.8A | |
| CURRENT RANGE | 0-0.8A | |
| RATED POWER | 6W | |
| RIPPLE & NOISE (max.) | 85mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 5ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | ||
| AC CURRENT | 0.2A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 885Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 41.8*32.8*23.8mm (L*W*H) | |
| PACKING | 70g ; 150pcs / 12Kg / CARTON | |
Meanwell SGAS06U07-P1J Features
l Pass LPS
l 3 years warranty
l Universal AC input/Full range
l 2 pole US plug, ClassⅡpower unit
l No load power consumption<0.1 W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l 18V model available (by request)
l Various DC plug quick adapter accessory available
l Extreme small and space-saving, takes up one spot on power strip
Meanwell SGAS06U07-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell SGAS06U07-P1J Mechanical Diagram
