SGAS06E24-P1J
9.36
Details

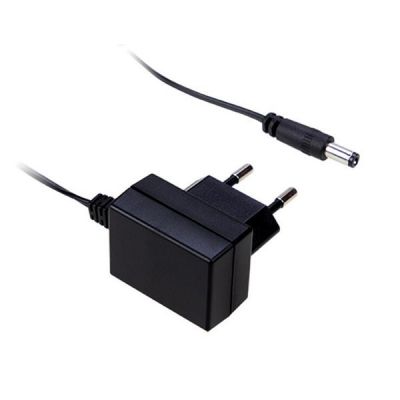

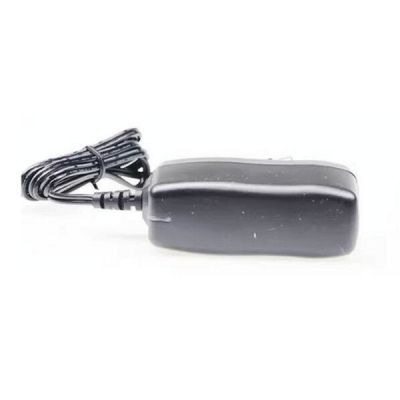

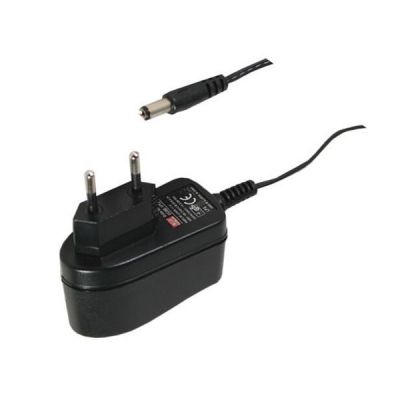

Meanwell SGAS06E24 is a 6W highly reliable single-output green adaptor with 24V0.25A0-0.25A6W80mVp-p. The product highlights compact, wall-mounted and convenient for carry. It is a classⅡpower unit (no FG), equipped with standard 2-Pin European plug. At the same time, the unit accepts the input range from 90VAC to 264VAC with output voltage 24VDC. Therefore, this can satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 83% and extremely low no-load power consumption below 0.1W, Meanwell SGAS06E24 complies with EU ErP and meet CoC version 5. Furthermore, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The model is approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Because of its high safety, high reliability and high quality, Meanwell SGAS06E24 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS06E24-P1J Encoding
| SGAS | Series Name |
| 60 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 24 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS06E24-P1J Specifications
| ORDER NO. | SGAS06E24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS06E24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 0.25A | |
| CURRENT RANGE | 0-0.25A | |
| RATED POWER | 6W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 5ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 82.00% | |
| AC CURRENT | 0.2A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 885Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 41.5*30.5*20mm (L*W*H) | |
| PACKING | 80g ; 150pcs / 13Kg / CARTON | |
Meanwell SGAS06E24-P1J Features
l Pass LPS
l 3 years warranty
l Fully enclosed plastic case
l Energy efficiency Level VI
l Universal AC input/Full range
l No load power consumption<0.1W
l 18V model available (by request)
l 2 pole EURO plug, ClassⅡpower unit
l Comply with EU ErP and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
l Extreme small and space-saving, takes up one spot on power strip
Meanwell SGAS06E24-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell SGAS06E24-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
