SGAS06E05-P1J
9.03
Details

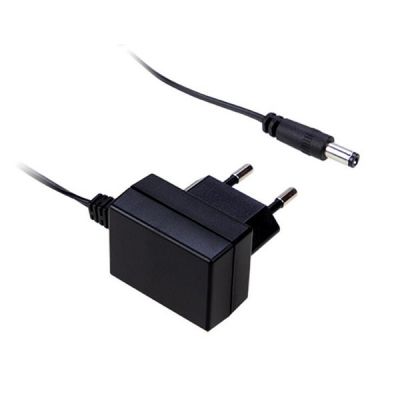

Meanwell SGAS06E05 is a 6W highly reliable single-output green adaptor with 5V1A0-1.00A5W75mVp-p. The product features compact, wall-mounted and convenient for carry. It is a classⅡpower unit (no FG) equipped with standard 2-Pin European plug, accepting input range from 90VAC to 264VAC. At the same time, SGAS06E05 provides the model with output voltage 5VDC, so that this can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 83% and extremely low no-load power consumption below 0.1W, SGAS06E05 complies with EU ErP and meet CoC version 5. In addition, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The unit is also approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Due to its high safety, high reliability and high quality, Meanwell SGAS06E05 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS06E05-P1J Encoding
| SGAS | Series Name |
| 60 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 5 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS06E05-P1J Specifications
| ORDER NO. | SGAS06E05-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS06E05 |
| DC VOLTAGE | 5V | |
| RATED CURRENT | 1.00A | |
| CURRENT RANGE | 0-1.00A | |
| RATED POWER | 5W | |
| RIPPLE & NOISE (max.) | 75mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 5ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 75.00% | |
| AC CURRENT | 0.2A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 885Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 41.5*30.5*20mm (L*W*H) | |
| PACKING | 80g ; 150pcs / 13Kg / CARTON | |
Meanwell SGAS06E05-P1J Features
l Pass LPS
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption<0.1W
l Energy efficiency Level VI
l Comply with EU ErP and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l 18V model available (by request)
l Various DC plug quick adapter accessory available
l 3 years warranty
l Extreme small and space-saving, takes up one spot on power strip
Meanwell SGAS06E05-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell SGAS06E05-P1J Mechanical Diagram
