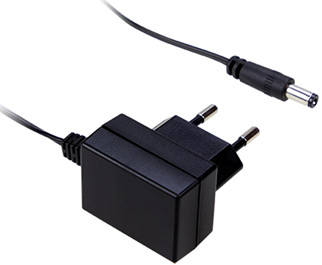

Meanwell SGAS06E Series is a 6W highly reliable single-output green adaptor, which is compact, wall-mounted and convenient for carry. It is a classⅡpower unit (no FG) equipped with standard 2-Pin European plug, accepting input range from 90VAC to 264VAC. At the same time, the entire series provides different models with output voltages ranging between 5VDC and 48VDC, so that this can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 83% and extremely low no-load power consumption below 0.1W, SGAS06E complies with EU ErP and meet CoC version 5. Apart from them, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The product is also approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Considering its high safety, high reliability and high quality, Meanwell SGAS06E Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGAS06E Series Encoding
| SGAS | Series Name |
| 60 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 5 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGAS06E Series Model Specifications
| ORDER NO. | SGAS06E05-P1J | SGAS06E07-P1J | SGAS06E09-P1J | SGAS06E12-P1J | SGAS06E15-P1J | SGAS06E24-P1J | SGAS06E48-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGAS06E05 | SGAS06E07 | SGAS06E09 | SGAS06E12 | SGAS06E15 | SGAS06E24 | SGAS06E48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 24V | 48V | |
| RATED CURRENT | 1.00A | 0.8A | 0.66A | 0.5A | 0.4A | 0.25A | 0.125A | |
| CURRENT RANGE | 0-1.00A | 0-0.8A | 0-0.66A | 0-0.5A | 0-0.4A | 0-0.25A | 0-0.125A | |
| RATED POWER | 5W | 6W | 6W | 6W | 6W | 6W | 6W | |
| RIPPLE & NOISE (max.) | 75mVp-p | 85mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 5ms at full load | |||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| EFFICIENCY (Typ.) | 75.00% | 77.00% | 79.00% | 79.00% | 80.00% | 82.00% | 83.00% | |
| AC CURRENT | 0.2A / 100VAC | |||||||
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |||||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |||||||
| PROTECTION | OVERLOAD | 105 ~ 180% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| OVER VOLTAGE | >120% rated output voltage | |||||||
| Protection type : Clamp by zener diode | ||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||
| Conducted emission | BS EN/EN55032(CISPR32) | Class B | ||||||
| Radiated emission | BS EN/EN55032(CISPR32) | Class B | ||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||||
| Voltage flicker | BS EN/EN61000-3-3 | ----- | ||||||
| EMC IMMUNITY | Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | ||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||||
| EFT bursts | BS EN/EN61000-4-4 | Level2, 1KV | ||||||
| Surge susceptibility | BS EN/EN61000-4-6 | Level 3, 1KV/L-N | ||||||
| Conducted susceptibility | BS EN/EN61000-4-5 | Level2, 3V | ||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 1, 1A/m | ||||||
| Voltage dips, interruption | BS EN/EN61000-4-11 | > 95% dip 0. 5 periods, 30% dip 25 periods, > 95% interruptions 250 periods |
||||||
| Others | Life | 3 years : 100% load 40℃, 12hours / day | ||||||
| MTBF | 885Khrs min. MIL-HDBK-217F(25℃) | |||||||
| DIMENSION | 41.5*30.5*20mm (L*W*H) | |||||||
| PACKING | 80g ; 150pcs / 13Kg / CARTON | |||||||
Meanwell SGAS06E Series Features
l Extreme small and space-saving, takes up one spot on power strip
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption<0.1 W
l Energy efficiency Level VI
l Comply with EU ErP and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l 18V model available (by request)
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell SGAS06E Series Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices

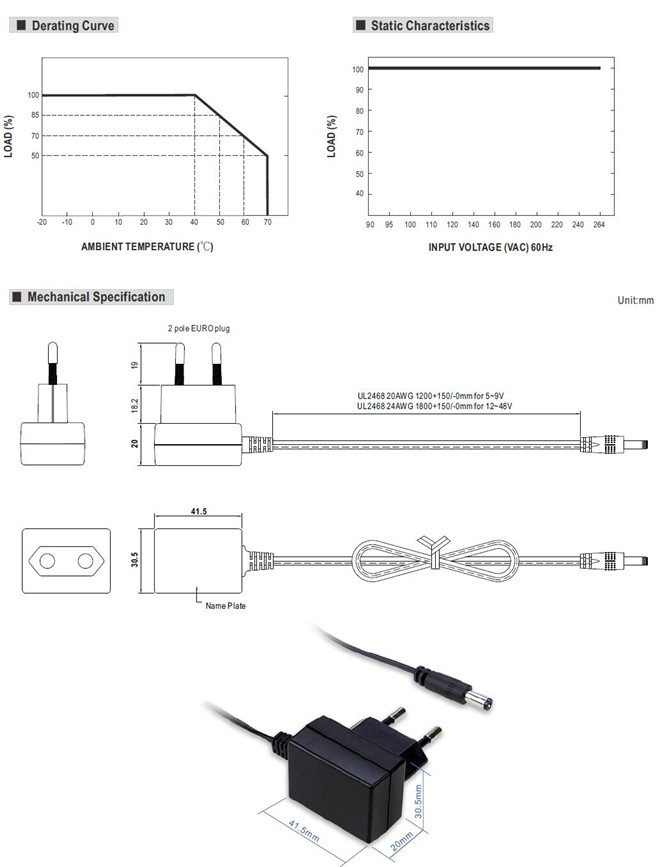

Meanwell SGAS06E Series Mechanical Diagram
