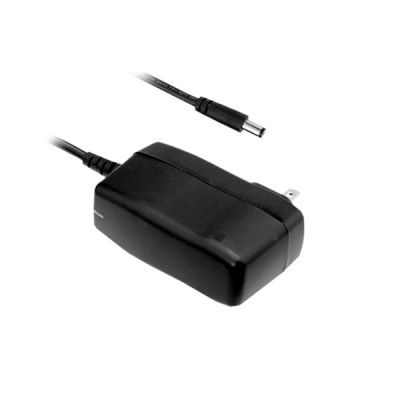

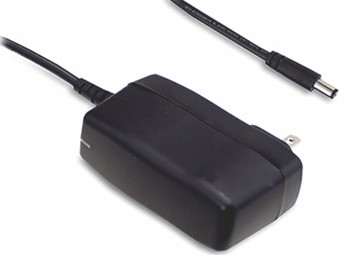

Meanwell SGA60U Series is a 60W ultra slim single-output green adaptor. The product is designed compact, wall-mounted style and convenient for carry. It is a classⅡ power unit (no FG) equipped with standard 2-Pin U.S. plug, and accepts the input range from 90VAC to 264VAC. At the same time, SGA60U provides different models with output voltages ranging between 5VDC and 48VDC, so that it could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 89.5% and extremely low no-load power consumption below 0.075W for 5~7.5V, below 0.15W for 9 ~48V, Meanwell SGA60U is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). In addition, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The entire series is approved for international safety regulations. Moreover, it adopts the 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. Considering its high safety, high reliability and high quality, Meanwell SGA60U Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA60U Series Encoding
| SGA | Series Name |
| 60 | Rated Wattage |
| U | US 2 pin AC Plug |
| 5 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGA60U Series Model Specifications
| ORDER NO. | SGA60U05-P1J | SGA60U07-P1J | SGA60U09-P1J | SGA60U12-P1J | SGA60U15-P1J | SGA60U18-P1J | SGA60U24-P1J | SGA60U48-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGA60U05 | SGA60U07 | SGA60U09 | SGA60U12 | SGA60U15 | SGA60U18 | SGA60U24 | SGA60U48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 6A | 6A | 5.5A | 5A | 4A | 3.33A | 2.5A | 1.25A | |
| CURRENT RANGE | 0-6A | 0-6A | 0-5.5A | 0-5A | 0-4A | 0-3.33A | 0-2.5A | 0-1.25A | |
| RATED POWER | 30W | 45W | 50W | 60W | 60W | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 120mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 2500ms, 50ms, 10ms/230VAC 2500ms, 50ms, 10ms/115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 83.50% | 85.00% | 86.50% | 87.50% | 87.00% | 88.00% | 89.00% | 89.00% | |
| AC CURRENT | Cold start 40A / 115VAC 80A / 230VAC | ||||||||
| INRUSH CURRENT (max.) | 0.25mA / 240VAC | ||||||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | ||||||||
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | ||||||||
| Protection type : Clamp by zener diode, output short | |||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +50℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Radiated emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Others | Life | 3 years : 100% load 40℃, 12hours / day | |||||||
| MTBF | 400Khrs min. MIL-HDBK-217F(25℃) | ||||||||
| DIMENSION | 93.5*35*51.5mm (L*W*H) | ||||||||
| PACKING | 250g ; 60pcs / 17kg / CARTON | ||||||||
Meanwell SGA60U Series Features
l Ultra slim
l Universal AC input/FulI range
l 2 pole USA plug, ClassⅡpower unit
l No load power consumption <0.075W for 5~7.5V, <O.15W for 9 ~48V
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l LED indicator for power on
l 54V model available for PoE (optional)
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell SGA60U Series Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
l Power sourcing equipment of PoE

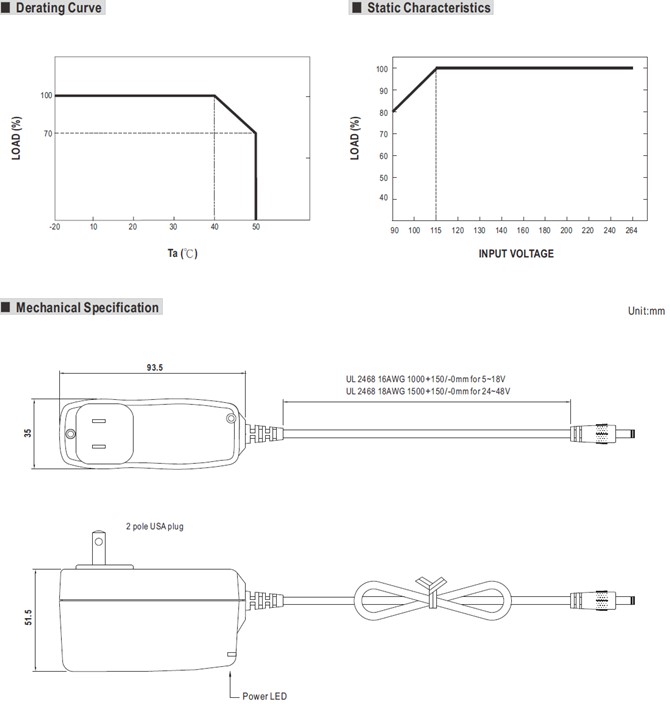

Meanwell SGA60U Series Mechanical Diagram
