SGA60E18-P1J
42.05
Details

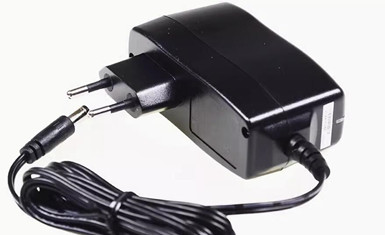

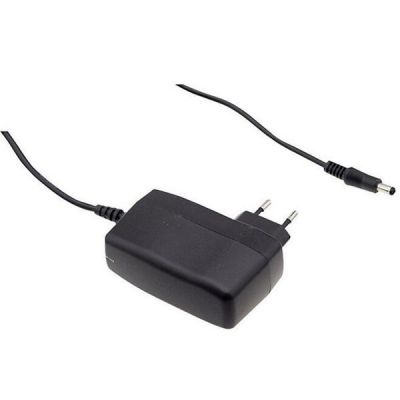

Meanwell SGA60E18 is a 60W ultra slim single-output green adaptor with 18V3.33A0-3.33A60W80mVp-p. It is designed compact, wall-mounted style and convenient for carry. The unit is a classⅡpower unit (no FG), equipped with standard 2-Pin European plug. Meanwhile, SGA60E18 accepts input range from 90VAC to 264VAC with output voltage 18VDC. So that it is able to satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 89.5% and extremely low no-load power consumption below 0.075W for 5~7.5V, below 0.15W for 9 ~48V, SGA60E18 is compliant with EU ErP and 9~48V meet CoC version 5. What’s more, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The product is approved for international safety regulations, and also adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Because of its high safety, high reliability and high quality, Meanwell SGA60E15 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA60E18-P1J Encoding
| SGA | Series Name |
| 60 | Rated Wattage |
| E | EURO 2 pin AC Plug |
| 18 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGA60E18-P1J Specifications
| ORDER NO. | SGA60E18-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGA60E18 |
| DC VOLTAGE | 18V | |
| RATED CURRENT | 3.33A | |
| CURRENT RANGE | 0-3.33A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 2500ms, 50ms, 10ms/230VAC 2500ms, 50ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT | 1.5A / 115VAC 0.75A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 40A / 115VAC 80A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 400Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 93.5*35*51.5mm (L*W*H) | |
| PACKING | 250g ; 60pcs / 17kg / CARTON | |
Meanwell SGA60E18-P1J Features
l Ultra slim
l Pass LPS
l 3 years warranty
l Energy efficiency Level VI
l Fully enclosed plastic case
l LED indicator for power on
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l 54V model available for PoE (optional)
l Comply with EU ErP and meet CoC version 5
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
l No load power consumption < 0.075W for 5~7.5V <0.15W for 9 ~48V
Meanwell SGA60E18-P1J Applications
l Office facilities
l Industrial equipment
l Consumer electronic devices
l Telecommunication devices
l Power sourcing equipment of PoE
Meanwell SGA60E18-P1J Mechanical Diagram
