SGA40U12-P1J
35.49
Details

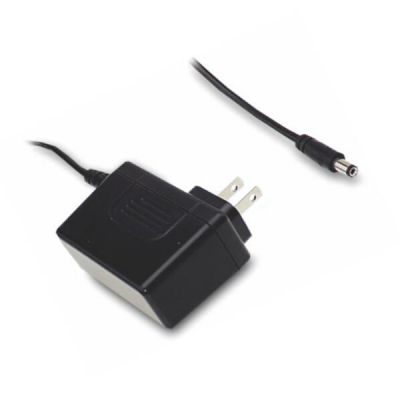

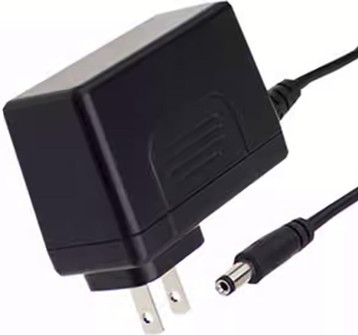

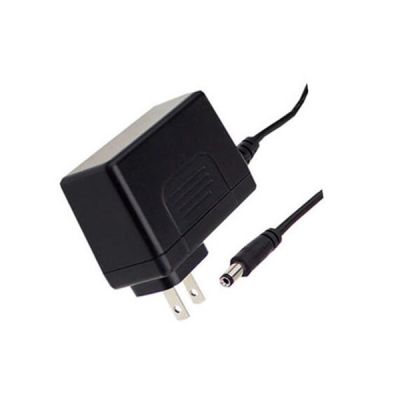

Meanwell SGA40U12 is a 40W ultra slim single-output green adaptor with 12V3.33A0-3.33A40W120mVp-p. The item is designed compact, wall-mounted style and convenient for carry. It is a classⅡ power unit (no FG), equipped with standard 2-Pin U.S. plug. Meanwhile, SGA40U12 accepts input range from 90VAC to 264VAC with output voltage 12VDC. Therefore, it is able to meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell SGA40U12 is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. Furthermore, the product is approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. In light of its high safety, high reliability and high quality, Meanwell SGA40U12 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA40U12-P1J Encoding
| SGA | Series Name |
| 40 | Rated Wattage |
| U | US 2 pin AC Plug |
| 12 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGA40U12-P1J Specifications
| ORDER NO. | SGA40U12-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGA40U12 |
| DC VOLTAGE | 12V | |
| RATED CURRENT | 3.33A | |
| CURRENT RANGE | 0-3.33A | |
| RATED POWER | 40W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 100ms, 10ms/230VAC 1500ms, 100ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86.50% | |
| AC CURRENT | 1A / 115VAC 0.5A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 40A / 115VAC 70A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 250% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 400Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 75.5*32*47.5mm (L*W*H) | |
| PACKING | 165g ; 60pcs / 13kg / CARTON | |
Meanwell SGA40U12-P1J Features
l Ultra slim
l Pass LPS
l 3 years warranty
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Universal AC input/ Full range
l 2 pole USA plug, ClassⅡpower unit
l No load power consumption<0.075W
l Protections: Short circuit / Overload / Over voltage
l Fully enclosed plastic case
l 54V model available for PoE (optional)
l Various DC plug quick adapter accessory available
Meanwell SGA40U12-P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
l Power sourcing equipment of PoE

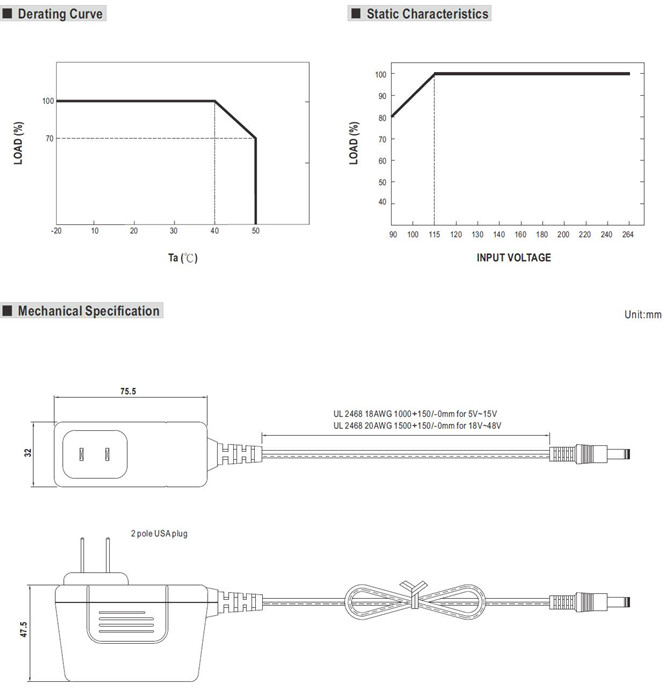

Meanwell SGA40U12-P1J Mechanical Diagram
