SGA25U24-P1J

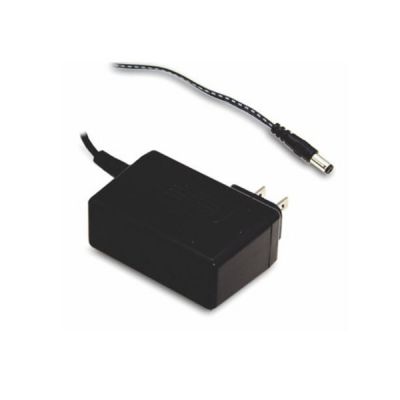

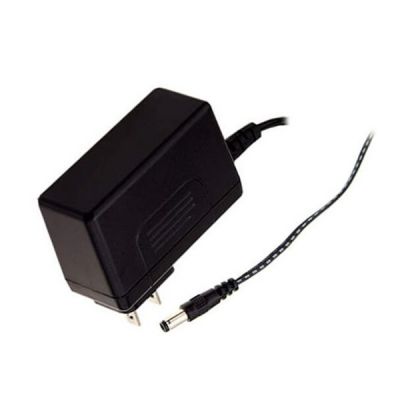

Meanwell SGA25U24 is a 25W ultra slim single-output green adaptor with 24V1.04A0-1.04A25W80mVp-p. The model outstands compact, wall-mounted style and convenient for carry. It is a classⅡ power unit (no FG), equipped with standard 2-Pin U.S. plug. Meanwhile, SGA25U24 accepts input range from 90VAC to 264VAC, with output voltage 24VDC. So that it can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 88.5% and extremely low no-load power consumption below 0.075W, SGA25U24 is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). The supreme feature also allows the adaptor to save energy when it is under either operating mode or standby mode. Furthermore, the unit is approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. Due to its high safety, high reliability and high quality, Meanwell SGA25U24 serves as a high performance power supply solution for various types of consumer electronic devices.

Meanwell SGA25U24-P1J Encoding

Meanwell SGA25U24-P1J Specifications

Meanwell SGA25U24-P1J Features

l  Ultra slim

l  Pass LPS

l  3 years warranty

l  Fully enclosed plastic case

l  Universal AC input/Full range

l  Energy efficiency Level VI

l  Comply with EISA 2007/DoE

l  2 pole USA plug, ClassⅡ power unit

l  No load power consumption<0.075W

l  54V model available for PoE (optional)

l  Protections: Short circuit/Overload/Over voltage

Meanwell SGA25U24-P1J Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

l  Power sourcing equipment of PoE

Meanwell SGA25U24-P1J Mechanical Diagram
