SGA25U05-P1J
14.89
Details

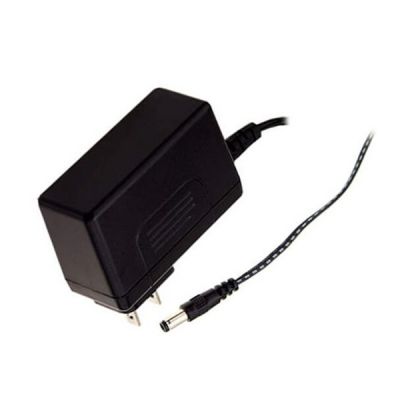

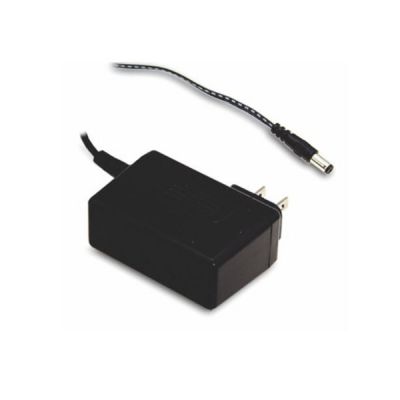

Meanwell SGA25U05 is a 25W ultra slim single-output green adaptor with 5V4A0-4A20W80mVp-p. The model is designed compact, wall-mounted style and convenient for carry. It is a classⅡ power unit (no FG) with standard 2-Pin U.S. plug, and accepts input range from 90VAC to 264VAC. with output voltage 5VDC. Therefore, it could meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 88.5% and extremely low no-load power consumption below O.075W, Meanwell SGA25U05 is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). Additionally, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The product is also approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Due to its high safety, high reliability and high quality, Meanwell SGA25U05 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA25U05-P1J Encoding
| SGA | Series Name |
| 25 | Rated Wattage |
| U | US 2 pin AC Plug |
| 5 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGA25U05-P1J Specifications
| ORDER NO. | SGA25U05-P1J | |
| ORDER NO. | SAFETY MODEL NO. | SGA25U05 |
| DC VOLTAGE | 5V | |
| RATED CURRENT | 4A | |
| CURRENT RANGE | 0-4A | |
| RATED POWER | 20W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 60ms, 10ms/230VAC 1500ms, 60ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 81.00% | |
| AC CURRENT | 0.7A / 115VAC 0.35A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 40A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 120 ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| Others | Life | 3 years : 100% load 40℃, 8hours / day |
| MTBF | 450Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 75.5*32*47.5mm (L*W*H) | |
| PACKING | 158g ; 60pcs / 10.5kg / CARTON | |
Meanwell SGA25U05-P1J Features
l Ultra slim
l Pass LPS
l Universal AC input/Full range
l 2 pole USA plug, ClassⅡ power unit
l No load power consumption<0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l 54V model available for PoE (optional)
l 3 years warranty
Meanwell SGA25U05-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l Power sourcing equipment of PoE
Meanwell SGA25U05-P1J Mechanical Diagram
