SGA25E15-P1J
15.91
Details

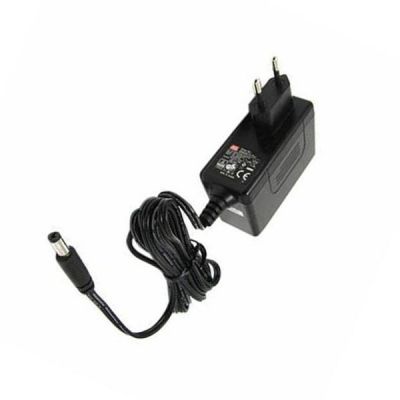

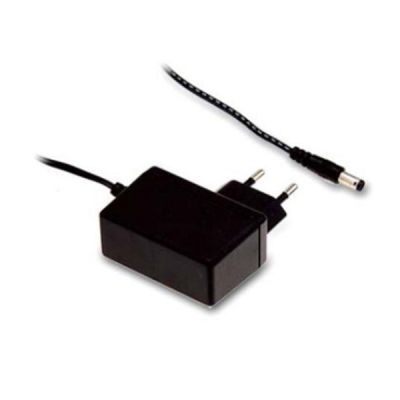

Meanwell SGA25E15 is a 25W ultra slim single-output green adaptor with 15V1.66A0-1.66A25W80mVp-p. It stands out with compact, wall-mounted style and convenient for carry. The item is a classⅡpower unit (no FG), equipped with standard 2-Pin European plug. SGA25E15 accepts input range from 90VAC to 264VAC, offered with output voltage 15VDC. Therefore, this could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell SGA25E15 is compliant with EU ErP and meet CoC version 5. Meanwhile, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The model is also approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. As a result of its high safety, high reliability and high quality, Meanwell SGA25E15 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA25E15-P1J Encoding
| SGA | Series Name |
| 25 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 15 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell SGA25E15-P1J Specifications
| ORDER NO. | SGA25E15-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGA25E15 |
| DC VOLTAGE | 15V | |
| RATED CURRENT | 1.66A | |
| CURRENT RANGE | 0-1.66A | |
| RATED POWER | 25W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 60ms, 10ms/230VAC 1500ms, 60ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT | 0.7A / 115VAC 0.35A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 40A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 120 ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 8hours / day |
| MTBF | 450Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 75.5*32*47.5mm (L*W*H) | |
| PACKING | 158g ; 60pcs / 10.5kg / CARTON | |
Meanwell SGA25E15-P1J Features
l Ultra slim
l Pass LPS
l 3 years warranty
l Energy efficiency Level VI
l Fully enclosed plastic case
l Universal AC input/Full range
l 54V model available for PoE (optional)
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption<0.075W
l Comply with EU ErP and meet CoC version 5
l Protections: Short circuit/Overload/Over voltage
Meanwell SGA25E15-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l Power sourcing equipment of PoE
Meanwell SGA25E15-P1J Mechanical Diagram
