SGA12U07-P1J
12.08
Details

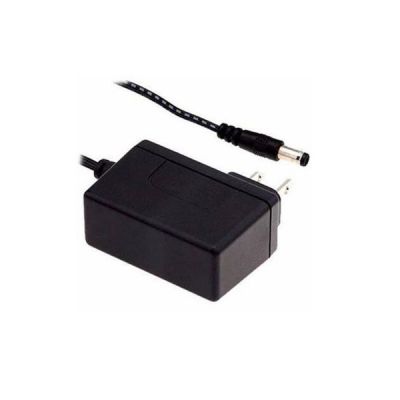

Meanwell SGA12U07 is a 12W ultra slim single-output green adaptor with 5V2.4A0-2.4A12W50mVp-p. The unit highlights compact, wall-mounted style and convenient for carry. It is a classⅡpower unit (no FG), provided with standard 2-Pin U.S. plug. Meanwhile, SGA12U07 accepts input range from 90VAC to 264VAC with output voltage 7VDC. So that it is able to meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, Meanwell SGA12U07 is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). Furthermore, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The model is approved for international safety regulations. What’s more, it adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Thanks to its high safety, high reliability and high quality, Meanwell SGA12U07 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA12U07-P1J Encoding
| SGA | Series Name |
| 12 | Rated Wattage |
| U | US 2 pin AC Plug |
| 07 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| USB: USB (Type A) for 5V standard model only | |
| Other Options available by customer requested |
Meanwell SGA12U07-P1J Specifications
| ORDER NO. | SGA12U07-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGA12U07 |
| DC VOLTAGE | 7.5V | |
| RATED CURRENT | 1.6A | |
| CURRENT RANGE | 0-1.6A | |
| RATED POWER | 12W | |
| RIPPLE & NOISE (max.) | 50mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 10ms/230VAC 1500ms, 50ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | ||
| AC CURRENT | 0.4A / 115VAC 0.2A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Parameter | |
| Conducted emission | ||
| Radiated emission | ||
| Others | Life | 3 years : 100% load 40℃, 8hours / day |
| MTBF | 265Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 62.2*27.4*45.5mm (L*W*H) | |
| PACKING | 109g ; 110pcs / 13kg / CARTON for cable connection ; 56.2g ; 90pcs / 7.5kg / CARTON for USB connection | |
Meanwell SGA12U07-P1J Features
l Ultra slim
l Pass LPS
l 3 years warranty
l Universal AC input/Full range
l 2 pole USA plug, ClassⅡpower unit
l No load power consumption<0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit / Overload / Over voltage
l Fully enclosed plastic case
l 54V model available for PoE (optional)
Meanwell SGA12U07-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l Power sourcing equipment of PoE
Meanwell SGA12U07-P1J Mechanical Diagram
