SGA12E24-P1J
12.25
Details

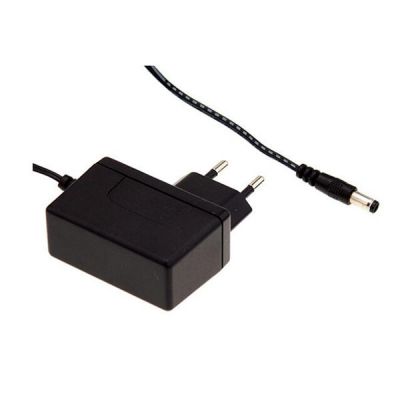

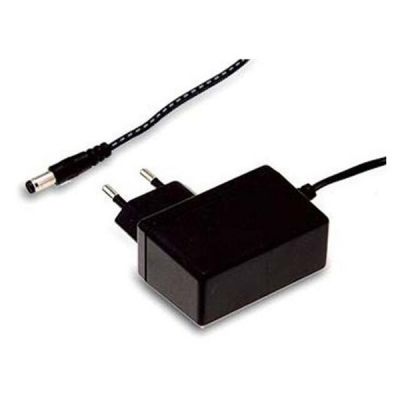

Meanwell SGA12E24 is a 12W ultra slim single-output green adaptor with 24V0.5A0-0.5A12W100mVp-p. The model features compact, wall-mounted style and convenient for carry. It is a classⅡpower unit (no FG), equipped with standard 2-Pin European plug. SGA12E24 accepts input range from 90VAC to 264VAC with output voltages 24VDC. Therefore, this could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, SGA12E24 is compliant with EU ErP and meet CoC version 5. Furthermore, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. Additionally, SGA12E24 is approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Due to its high safety, high reliability and high quality, Meanwell SGA12E24 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA12E24-P1J Encoding
| SGA | Series Name |
| 12 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 24 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| USB: USB (type A0 for 5V standard model Only | |
| Other Options available by customer requested |
Meanwell SGA12E24-P1J Specifications
| ORDER NO. | SGA12E24-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGA12E24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 0.5A | |
| CURRENT RANGE | 0-0.5A | |
| RATED POWER | 12W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 10ms/230VAC 1500ms, 50ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT | 0.4A / 115VAC 0.2A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 120 ~ 250% rated output power |
| Protection type : Clamp by zener diode, output short | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 8hours / day |
| MTBF | 265Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 62.2*27.4*39.7mm (L*W*H) | |
| PACKING | 100g ; 90pcs / 10kg / CARTON for cable connection ; 59.5g ; 90pcs / 8kg / CARTON for USB connection | |
Meanwell SGA12E24-P1J Features
l Ultra slim
l 3 years warranty
l Pass LPS
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption<0.075W
l Energy efficiency Level VI
l Comply with EU ErP and meet CoC version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l 54V model available for PoE (optional)
l Various DC plug quick adapter accessory available
Meanwell SGA12E24-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l Power sourcing equipment of PoE
Meanwell SGA12E24-P1J Mechanical Diagram
