SGA12E12-P1J
12.08
Details

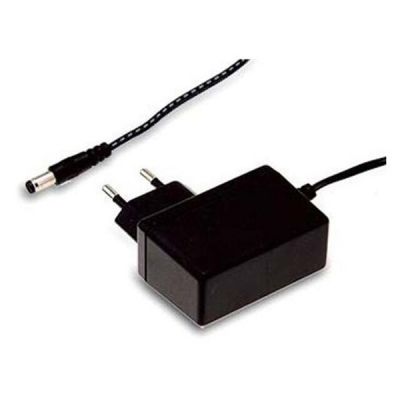

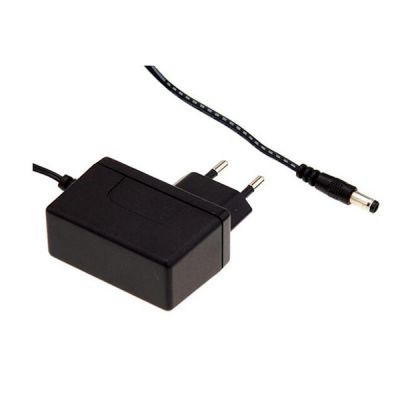

Meanwell SGA12E12 is a 12W ultra slim single-output green adaptor with 12V1A0-1A12W80mVp-p. It stands out with compact, wall-mounted style and convenient for carry. The product is a classⅡpower unit (no FG) with standard 2-Pin European plug. SGA12E12 accepts input range from 90VAC to 264VAC with output voltages 12VDC, so that this could satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, Meanwell SGA12E12 is compliant with EU ErP and meet CoC version 5. The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. What’s more, SGA12E12 is approved for international safety regulations, and adopts 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. In view of its high safety, high reliability and high quality, Meanwell SGA12E12 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA12E12-P1J Encoding
| SGA | Series Name |
| 12 | Rated Wattage |
| E | EURO 2pin AC Plug |
| 12 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| USB: USB (type A0 for 5V standard model Only | |
| Other Options available by customer requested |
Meanwell SGA12E12-P1J Specifications
| ORDER NO. | SGA12E12-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGA12E12 |
| DC VOLTAGE | 12V | |
| RATED CURRENT | 1A | |
| CURRENT RANGE | 0-1A | |
| RATED POWER | 12W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 10ms/230VAC 1500ms, 50ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 83.00% | |
| AC CURRENT | 0.4A / 115VAC 0.2A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power |
| Protection type : Clamp by zener diode, output short | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 3 years : 100% load 40℃, 8hours / day |
| MTBF | 265Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 62.2*27.4*39.7mm (L*W*H) | |
| PACKING | 100g ; 90pcs / 10kg / CARTON for cable connection ; 59.5g ; 90pcs / 8kg / CARTON for USB connection | |
Meanwell SGA12E12-P1J Features
l Pass LPS
l Ultra slim
l 3 years warranty
l Energy efficiency Level VI
l Fully enclosed plastic case
l Universal AC input/Full range
l 54V model available for PoE (optional)
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption<0.075W
l Comply with EU ErP and meet CoC version 5
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
Meanwell SGA12E12-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l Power sourcing equipment of PoE
Meanwell SGA12E12-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
