SFTN02N-15N
5.62

SFTN02N-15N

$5.62

Meanwell 2W SMD Package DC-DC Unregulated Converter with 15mA104mA15V27~133mA

- +
Availability:In stock
SKU Meanwell SFTN02N-15N
Brand Meanwell
Details

Meanwell SFTN02N-15N is 2W isolated and unregulated DC-DC converter with 15mA104mA15V27~133mA. At the same time, the item features module type and SMD package. The main highlights are as following: international standard pins, high efficiency reaching up to 86%, wide working temperature range -40~+85℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032. Furthermore, SFTN02N-N models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/12V/1 5V for single output. In view of its longevity, excellent quality and high reliability, Meanwell SFTN02N-15N is suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

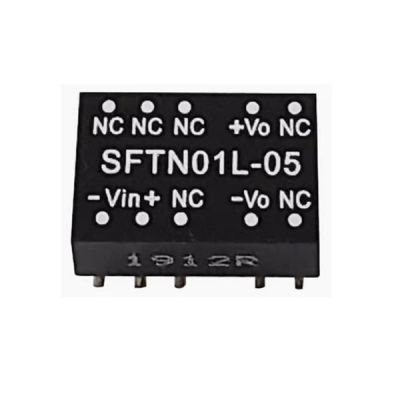

SFTN02N-15N Meanwell Power Supply 2W DC-DC Converter SFTN02N-N SFTN02N-05N SFTN02N-12N Module type low cost YCICT

Meanwell SFTN02N-15N Encoding

SFTN Series Name
2 Rated Wattage
N Input voltage (L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc )
15 Output Voltage (5/12/15/Vdc
N New Series

Meanwell SFTN02N-15N Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SFTN02N-05N Normal 24V (21.6~26.4V) 15mA 107mA 5V 40~400mA 81% 1500μF
SFTN02N-12N 15mA 105mA 12V 33~167mA 86% 330μF
SFTN02N-15N 15mA 104mA 15V 27~133mA 82% 330μF
INPUT VOLTAGE RANGE L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc
SURGE VOLTAGE (100ms max.) 5Vin models : 9Vdc 12Vin models : 16Vdc 24Vin models : 30Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 5Vin models: 800mA Slow-Blow Type 12Vin models: 300mA Slow-Blow Type 24Vin models: 170mA Slow-Blow Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±5.0%
RATED POWER 2W
RIPPLE & NOISE 150mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION ±5%
SWITCHING FREQUENCY (Typ.) 85KHz
PROTECTION SHORT CIRCUIT 0.5 second max.
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+85 (Refer to "Derating Curve")
CASE TEMPERATURE +90 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03% /(0 ~ 90)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 10sec./240max
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:3KVDC
ISOLATION RESISTANCE I/P-O/P:10G Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 115pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) Class A/B with external components
Radiated BS EN/EN55032(CISPR32)
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 ±8KV air ;±6KV contact, Criterion B
Radiated Susceptibility BS EN/EN61000-4-3 3V/m, Criterion A
EFT/Burest BS EN/EN61000-4-4 1KV at power, Criterion B
Surge BS EN/EN61000-4-5 0.5KV Line-Line, Criterion B
Conducted BS EN/EN61000-4-6 3Vrms, Criterion A
Magnetic Field BS EN/EN61000-4-8 1A/m, Criterion A
OTHERS MTBF 886Khrs min. MIL-HDBK-217F(25)
DIMENSION 15.24*10.9*9.1mm (0.6*0.43*0.36 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 1.6g ; 33pcs/per tube, 1584pcs/48 tube/per carton

Meanwell SFTN02N-15N Features

l  Low cost

l  3 years warranty

l  3KVDC I/O isolation

l  High efficiency up to 86%

l  Operating temperature range -40~+85℃

l  SMD package with industry standard pinout

Meanwell SFTN02N-N Series Applications

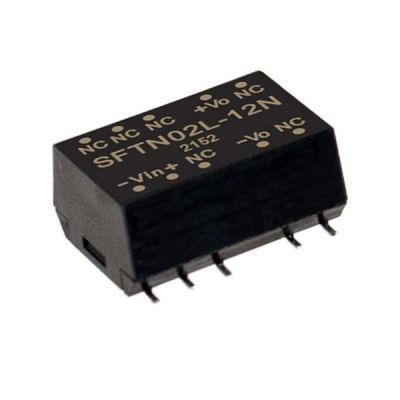

SFTN02N-N Meanwell Power Supply 2W DC-DC Unregulated Converter SFTN02N-05N SFTN02N-12N SFTN02N-15N Module type YCICT

Meanwell SFTN02N-15N Applications

l  Instrument

l  Analyzer

l  Detector

l  Data switch

l  Wireless network

l  Telecom/datacom system

l  Industrial control facility

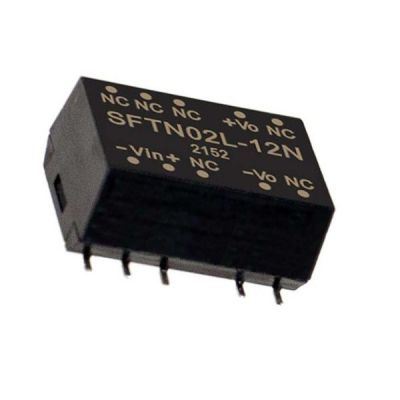

SFTN02N-N Meanwell Power Supply 2W SMD Package DC-DC Converter SFTN02N-05N SFTN02N-12N SFTN02N-15N Module type YCICT

Meanwell SFTN02N-15N Mechanical Diagram

SFTN02N-N Meanwell Power Supply 2W SMD DC-DC Converter SFTN02N-05N SFTN02N-12N SFTN02N-15N Module type low cost YCICT
