SFTN01N-15N
3.98

SFTN01N-15N

$3.98

Meanwell 1W SMD Package DC-DC Unregulated Converter with 10mA55mA15V6.7~67mA

- +
Availability:In stock
SKU Meanwell SFTN01N-15N
Brand Meanwell
Details

Meanwell SFTN01N-15N is 1W isolated unregulated DC-DC converter with 10mA55mA15V6.7~67mA. The product features module type and SMD package. The main highlights are as following: international standard pins, high efficiency reaching up to 82%, wide working temperature range -40~+100℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032. In addition, SFTN01N-N models account for different input voltage 5V/12V/24V±10%, and various output voltage 5V/9V/12V/15V for single output. As a result of its long lifespan, excellent quality and high reliability, Meanwell SFTN01N-15N is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

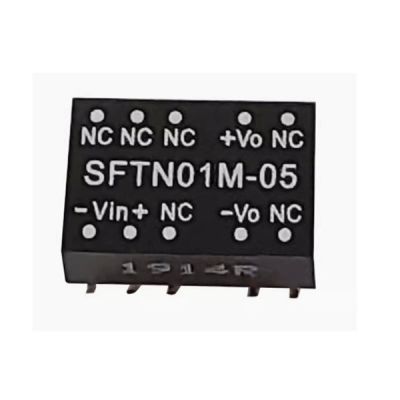

SFTN01N-15N Meanwell power supply 1W DC-DC Converter SFTN01N-N SFTN01N-05N SFTN01N-09N SFTN01N-12N low cost YCICT

Meanwell SFTN01N-15N Encoding

SFTN Series Name
01 Rated Wattage
N Input voltage (L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc )
15 Output Voltage (5/9/12/15/Vdc
N New Series

Meanwell SFTN01N-15N Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SFTN01N-05N Normal 24V (21.6~26.4V) 10mA 55mA 5V 20~200mA 79% 1000μF
SFTN01N-09N 10mA 55mA 9V 11.1~111mA 79% 470μF
SFTN01N-12N 10mA 55mA 12V 8.4~84mA 80% 220μF
SFTN01N-15N 10mA 55mA 15V 6.7~67mA 81% 220μF
INPUT VOLTAGE RANGE L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc
INTERNAL POWER DISSIPATION 500mW
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 5Vin models: 750mA Slow-Blow Type, 12Vin models: 300mA Slow-Blow Type, 24Vin models: 150mA Slow-Blow Type
OUTPUT VOLTAGE ACCURACY ±5.0%
RATED POWER 1W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION ±8%
SWITCHING FREQUENCY (Typ.) 90KHz
PROTECTION SHORT CIRCUIT 0.5 second max
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +100 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0~85)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 10sec./240max.
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:3KVDC
ISOLATION RESISTANCE I/P-O/P:10G Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 75pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) Class A/B with external components
Radiated BS EN/EN55032(CISPR32)
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 ±8KV air ;±6KV contact, Criterion B
Radiated Susceptibility BS EN/EN61000-4-3 3V/m, Criterion A
EFT/Burest BS EN/EN61000-4-4 1KV at power, Criterion B
Surge BS EN/EN61000-4-5 0.5KV Line-Line, Criterion B
Conducted BS EN/EN61000-4-6 3Vrms, Criterion A
Magnetic Field BS EN/EN61000-4-8 1A/m, Criterion A
OTHERS MTBF 1045Khrs min. MIL-HDBK-217F(25)
DIMENSION 15.24*10.9*7.1mm (0.6*0.43*0.28 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 1g ; 33pcs/per tube, 1188pcs/36 tube/per carton

Meanwell SFTN01N-15N Features

l  Low cost

l  3KVDC I/O isolation

l  High efficiency up to 82%

l  Operating temperature range -40~+100℃

l  3.3V models available (Optional, Order No.: SFTN01L-03N, SFTN01 M-03N, SFTN01 N-O3N)

l  3 years warranty

l  SMD package with industry standard pinout

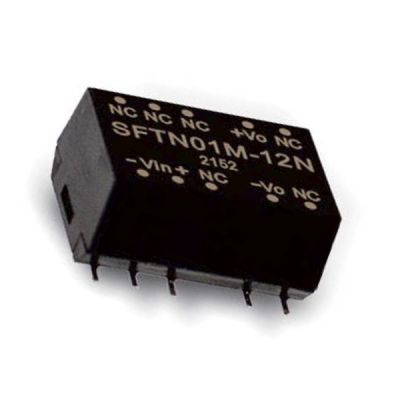

SFTN01N-15N Meanwell power supply 1W SMD DC-DC Converter SFTN01N-N SFTN01N-05N SFTN01N-09N SFTN01N-12N low cost YCICT

Meanwell SFTN01N-15N Applications

l  Analyzer

l  Detector

l  Data switch

l  Instrument

l  Wireless network

l  Industrial control facility

l  Telecom/ datacom system

SFTN01N-15N Meanwell power supply 1W SMD package DC-DC Converter SFTN01N-N SFTN01N-05N SFTN01N-09N SFTN01N-12N YCICT

Meanwell SFTN01N-15N Mechanical Diagram

SFTN01N-15N Meanwell power supply 1W SMD DC-DC Converter SFTN01N-N SFTN01N-05N SFTN01N-09N SFTN01N-12N YCICT
