SE-600-15
47.99
Details

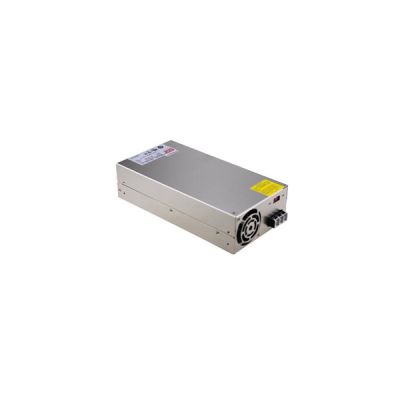

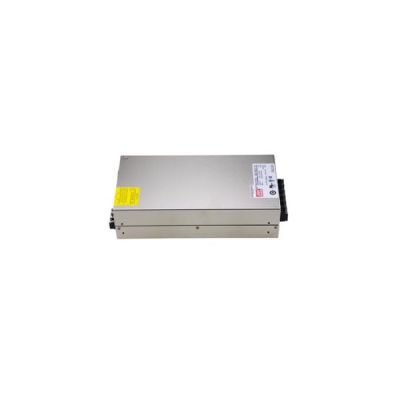

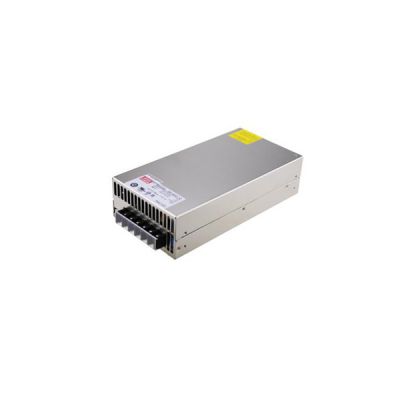

Meanwell SE-600-15 is economical medium and high-power switching power supply with 15V40A0-40A600W, and manufactured with a lead-free process. This way meets environmental protection requirements, and also passed international UL/CUL safety certification. Moreover, SE-600-15 offers complete protection functions such as short-circuit protection, overload protection, and overvoltage protection. Meanwell SE-600-15 is with built-in remote detection function (with line loss compensation function) and built-in DC fan forced ventilation cooling. Apart from them, the product has LED lights indicating the working status of power supply, and 100% full load aging test is guaranteed. Thanks to High power density, High-cost performance and High longevity, Meanwell SE-600-15 provides a high price-to-performance power supply solution for various industrial cases.
Meanwell SE-600-15 Specifications
| Model | SE-600-15 | |
| Output | DC VOLTAGE | 15V |
| RATED CURRENT | 40A | |
| CURRENT RANGE | 0-40A | |
| RATED POWER | 600W | |
| RIPPLE & NOISE (max.) mVp-p | 150 | |
| VOLTAGE ADJ. RANGE | 13.5-16.5V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 20ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC selected by SW 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT (Typ.) | 12A/115VAC 7.5A/230VAC | |
| INRUSH CURRENT (Typ. ) | 30A/115VAC 60A/230VAC | |
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER VOLTAGE | 18 ~ 21V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | 85℃±5℃ (TSW1) detect on heatsink of power transistor | |
| Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY | SAFETY STANDARDS | CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, BSMI CNS14336-1, KC K60950-1(for 12V,24V only) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |
| Others | MTBF | 521.7K hrs min. Telcordia TR/SR-332 (Bellcore) ; 197K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 247*127*63.5mm (L*W*H) | |
| PACKING | 2.1Kg; 6pcs/13.4Kg/1.03CUFT | |
Meanwell SE-600-15 Features
l Cost Competitive
l 2-year warranty
l Passed UL certification
l High power density: 4.9w/in³
l Built-in remote sensing function
l AC input range selected by switch
l Forced air cooling by built-in DC fan
Protection type: short circuit/overload/overvoltage/over temperature
Meanwell SE-600-15 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
Abundant supply to meet market demand. The warehouse is rich in goods with all kinds of commodities, which Can meet the needs of different customers.
Fast delivery and high efficiency. The warehouse has sufficient supply, when customers need to order, we can quickly find the goods, and deliver out, which effectively improves the efficiency and saves valuable time for customers
Our products have more advantages in price. We always believe that you should enjoy higher quality with lower price. Therefore, we are committed to providing consumers with the most cost-effective products.
No matter how great our goals are, or how many great things waiting for us to do, we must keep our promises and do it well. Because these is one word that cannot be missing in the secret of success. That is "integrity".
