SE-600-12
47.68
Details

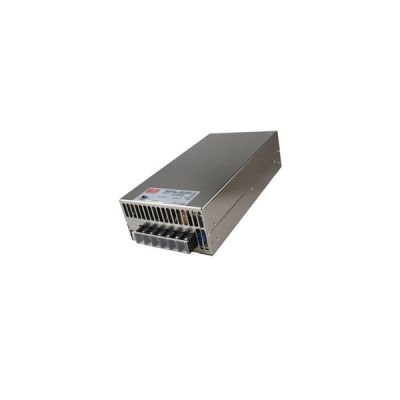

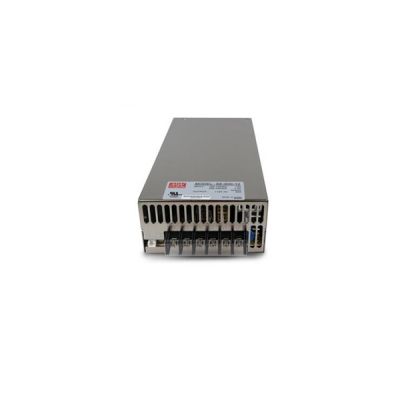

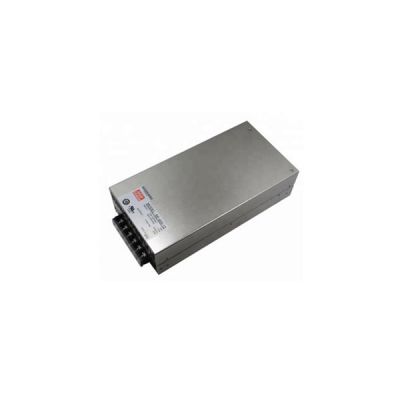

Meanwell SE-600-12 is economical medium and high-power switching power supply with 12V50A0-50A600W. It is manufactured with a lead-free process that fulfills environmental protection requirements, and It has also passed international UL/CUL safety certification. Moreover, SE-600-12 has complete protection functions such as short-circuit protection, overload protection, overvoltage protection and Overheating protection. Meanwell SE-600-12 is with built-in remote detection function (with line loss compensation function) and built-in DC fan forced ventilation cooling. Additionally, the product has LED lights indicating the working status of the power supply, and 100% full load aging test is guaranteed. Because of High power density, High-cost performance and High longevity, Meanwell SE-600-12 is a high price-to-performance power supply solution for various industrial cases.
Meanwell SE-600-12 Specifications
| Model | SE-600-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 50A | |
| CURRENT RANGE | 0-50A | |
| RATED POWER | 600W | |
| RIPPLE & NOISE (max.) mVp-p | 150 | |
| VOLTAGE ADJ. RANGE | 10-13.5V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 20ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC selected by SW 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 83.00% | |
| AC CURRENT (Typ.) | 12A/115VAC 7.5A/230VAC | |
| INRUSH CURRENT (Typ. ) | 30A/115VAC 60A/230VAC | |
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER VOLTAGE | 13.8 ~ 16.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | 85℃±5℃ (TSW1) detect on heatsink of power transistor | |
| Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY | SAFETY STANDARDS | CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, BSMI CNS14336-1, KC K60950-1(for 12V,24V only) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |
| Others | MTBF | 521.7K hrs min. Telcordia TR/SR-332 (Bellcore) ; 197K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 247*127*63.5mm (L*W*H) | |
| PACKING | 2.1Kg; 6pcs/13.4Kg/1.03CUFT | |
Meanwell SE-600-12 Features
l Passed UL certification
l Cost Competitive
l 2-year warranty
l AC input range selected by switch
l Forced air cooling by built-in DC fan
l High power density: 4.9w/in³
l Built-in remote sensing function
Protection type: short circuit/overload/overvoltage/over temperature
Meanwell SE-600-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
