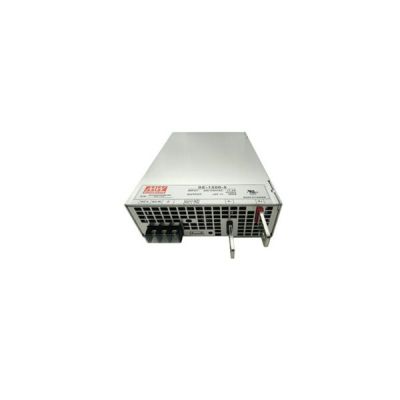

Meanwell SE-1500 Series is economical medium and high-power industrial switching power supply with AC input voltage 180～264VAC and AC input inrush current limit. They are manufactured with a lead-free process which meets environmental protection requirements and have complete protection functions such as short circuit protection, overload protection, overvoltage protection and overheat protection. The entire series passes through Safety certification UL/CUL. It is an enhanced version of the NE series power supply and built-in remote detection function (with line loss compensation function) and also remote power on/off function. Considering their high efficiency, long life and high reliability, Meanwell SE-1500 Series is suitable to use in various industrial environments.
Meanwell SE-1500 Series Model Specifications
| Model | SE-1500-5 | SE-1500-12 | SE-1500-15 | SE-1500-24 | SE-1500-27 | SE-1500-48 | |
| Output | DC VOLTAGE | 5V | 12V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 300A | 125A | 100A | 62.5A | 55.6A | 31.3A | |
| CURRENT RANGE | 0-300A | 0-125A | 0-100A | 0-62.5A | 0-55.6A | 0-31.3A | |
| RATED POWER | 1500W | 1500W | 1500W | 1500W | 1501.2W | 1502.4W | |
| RIPPLE & NOISE (max.) mVp-p | 150 | 150 | 150 | 150 | 150 | 150 | |
| VOLTAGE ADJ. RANGE | 3.3-5.5V | 10.8-13.5V | 13.5-16.5V | 21.6-26.4V | 25-30V | 43.2-56V | |
| VOLTAGE TOLERANCE | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 150ms, 12ms / 230VAC at full load | ||||||
| HOLD UP TIME | 26ms / 230VAC at full load | ||||||
| Input | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 81.00% | 85.00% | 85.00% | 87.00% | 88.00% | 89.00% | |
| AC CURRENT (Typ.) | 17.5A / 230VAC | ||||||
| INRUSH CURRENT (Typ. ) | 60A / 230VAC | ||||||
| LEAKAGE CURR ENT | <3.5mA / 240VAC | ||||||
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 14.5-16.2V | 18-21V | 27.6-32.4V | 31-35V | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| FUNCTION | DC_OK SIGNAL | PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V | |||||
| REMOTE CONTROL | RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off | ||||||
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1, BSMI CNS14336-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1 | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | Class B | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | |||||
| Harmonic Current | BS EN/EN61000-3-2 | ….. | |||||
| Voltage Flicker | BS EN/EN61000-3-3 | …... | |||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||||
| Radiated | BS EN/EN61000-4-3 | Level 3 | |||||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | |||||
| Surge | BS EN/EN61000-6-2 | 2KV/Line-Line 4KV/Line-Earth | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||||
| Others | MTBF | 333.3K hrs min. Telcordia SR-332 (Bellcore) ; 134.5K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 278*177.8*63.5mm (L*W*H) | ||||||
| PACKING | 3.3Kg; 4pcs/14.2Kg/1.14CUFT | ||||||
Meanwell SE-1500 Series Features
l AC input 180 ~ 264VAC
l AC input active surge current limiting
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Forced air cooling by built-in DC ball bearing fan
l High power density 7.8w/inch

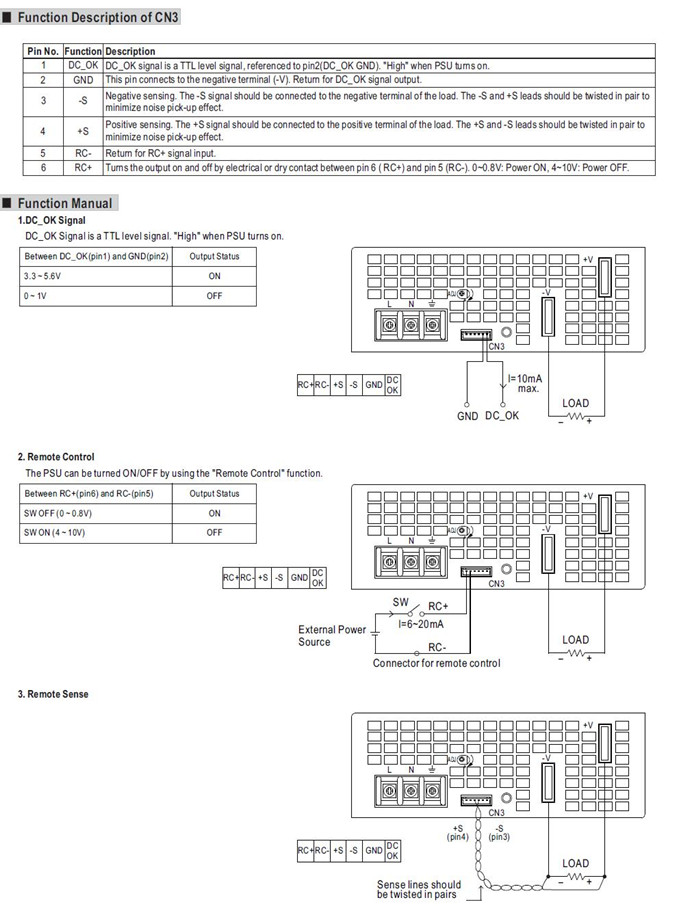

l With DC OK signal output
l Built-in remote ON-OFF control
l Built-in remote sense function
l UL/ CUL approved
l LOW cost
l 2 years warranty
Meanwell SE-1500 Mechanical Diagram
