SE-1000-9
60.69
Details

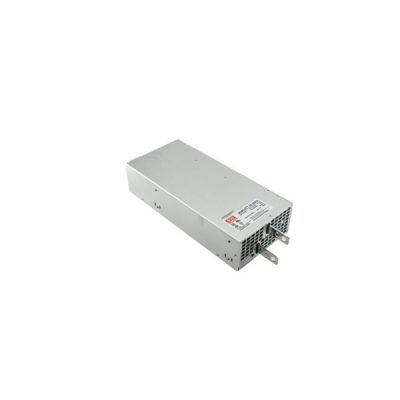

Meanwell SE-1000-9 is economical Non-PFC medium and high-power switching power supply. This model is manufactured with a lead-free process meeting environmental protection requirements and additionally, it has complete protection functions like short circuit protection, overload protection, overvoltage protection and overheat protection. SE-1000-9 is actually an enhanced version of the NE series power supply, and passes through Safety certification: UL/CUL and furthermore, with Built-in remote detection function (with line loss compensation function). Considering its High power density, High-cost performance and high longevity, Meanwell SE-1000-9 functions as a high price-to-performance power supply solution for various industrial fields.
Meanwell SE-1000-9 Specifications
| Model | SE-1000-9 | |
| Output | DC VOLTAGE | 9V |
| RATED CURRENT | 100A | |
| CURRENT RANGE | 0-100A | |
| RATED POWER | 900W | |
| RIPPLE & NOISE (max.) mVp-p | 150 | |
| VOLTAGE ADJ. RANGE | 7.5-10V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 20ms/230VAC 15ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC selected by TB2 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT (Typ.) | 17.5A/115VAC 10A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 55A/230VAC | |
| LEAKAGE CURR ENT | <2.5mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER VOLTAGE | 10.4-12.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1, BSMI CNS14336-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 424.5K hrs min. Telcordia SR-332 (Bellcore) ; 251.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 278*127*63.5mm (L*W*H) | |
| PACKING | 2.5Kg; 6pcs/16Kg/1.38CUFT | |
Meanwell SE-1000-9 Features
l Low cost
l 2 years warranty
l UL/ CUL approved
l AC input range selected by switch
l With DC_ OK signal output
l Built-in remote ON-OFF control
l Built-in remote sense function
l Forced air cooling by built-in DC ball bearing fan
l High power density 7.3w/inch³
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell SE-1000-9 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
