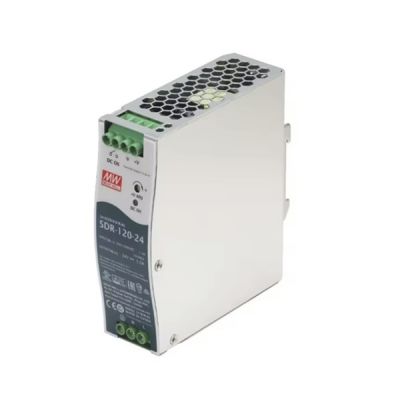

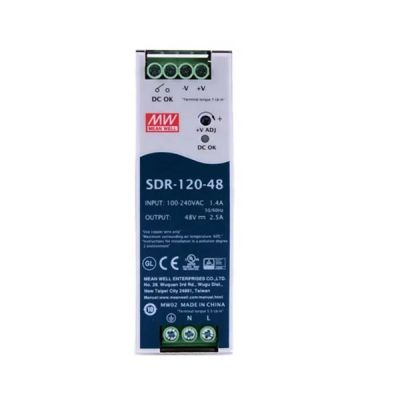

Meanwell 120W Single Output Industrial DIN RAIL with PFC Function

- +
Availability:In stock
SKU Meanwell SDR-120
Brand Meanwell
Details

Meanwell SDR-120 Series is 120W Single Output Industrial DIN RAIL with PFC Function. The entire series adapt to be installed on DIN rail TS-35/7.5 or 15 mounting rails. The body is designed just 40 mm in width, which saves a lot of space inside the cabinets. At the same time, SDR-120 Series adopts the full range AC input from 90VAC to 264V AC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. Apart from them, Meanwell SDR-120 Series is designed with metal housing that enhances the power dissipation. With working efficiency up to 91%, they can operate at the ambient temperature between -20℃and 70℃ under air convection. Additionally, the series is equipped with protections of Short circuit/Overload/Over voltage/Over temperature. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) allow Meanwell SDR-120 series a very competitive power supply solution for industrial applications.

Meanwell SDR-120 price and specs 120W Single Output Industrial Din Rail Switching Power Supply SDR-120-12/24/48 YCICT

Meanwell SDR-120 Series Model Specifications

Model SDR-120-12 SDR-120-24 SDR-120-48
Output DC VOLTAGE 12V 24V 48V
RATED CURRENT 10A 5A 2.5A
CURRENT RANGE 0-10A 0-5A 0-2.5A
RATED POWER  120W 120W 120W
PEAK CURRENT 15A 7.5A 3.75A
PEAK POWER 180W (3 sec)
RIPPLE & NOISE (max.)  100mVp-p 100mVp-p 120mVp-p
VOLTAGE ADJ. RANGE 12-14V 24-28V 48-55V
VOLTAGE TOLERANCE ±1.0% ±1.0% ±1.0%
LINE REGUL ATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load
HOLD UP TIME  20ms/230VAC 20ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR (Typ.) 0.93/230VAC 0.96/115VAC at full load
EFFICIENCY (Typ.)  89.00% 91.00% 90.50%
AC CURRENT (Typ.) 1.4A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 70A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERLOAD Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage
>150% rated power, constant current limiting with auto-recovery within 3 seconds and shut down o/p voltage after 3 seconds
OVER VOLTAGE 14-17V 29-33V 56-65V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE 95±5 (TSW) detect on heatsink of power switch
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION DC OK REALY CONTACT RATINGS (max.) 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
ENVIRONMENT WORKING TEMP -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &EMC SAFETY STANDARDS UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004, BSMI CNS14336-1 approved;(meet BS EN/EN60204-1)
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2),
BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020, SEMI F47 approved
Others MTBF 289.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 40*125.2*113.5mm (W*H*D)
PACKING 0.67Kg; 20pcs/14.4Kg/1.16CUFT

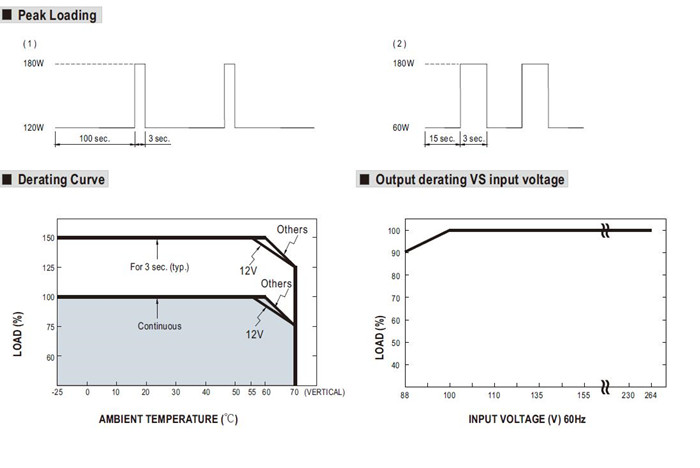

Meanwell SDR-120 Series Features

l  High efficiency 91% and low power dissipation

l  150% peak load capability

l  Built-in active PFC function, PF>0.93

l  Protections: Short circuit/Overload /Over voltage/Over temperature

l  Cooling by free air convection

l  Can be installed on DIN rail TS-35/7.5 or 15

l  UL 508 (industrial control equipment) approved

l  BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

l  Built-in DC OK relay contact

l  100% full load burn-in test

l  3 years warranty

Meanwell SDR-120 price and specs 120W Single Output Industrial Din Rail Power Supply SDR-120-12/24/48 PFC YCICT

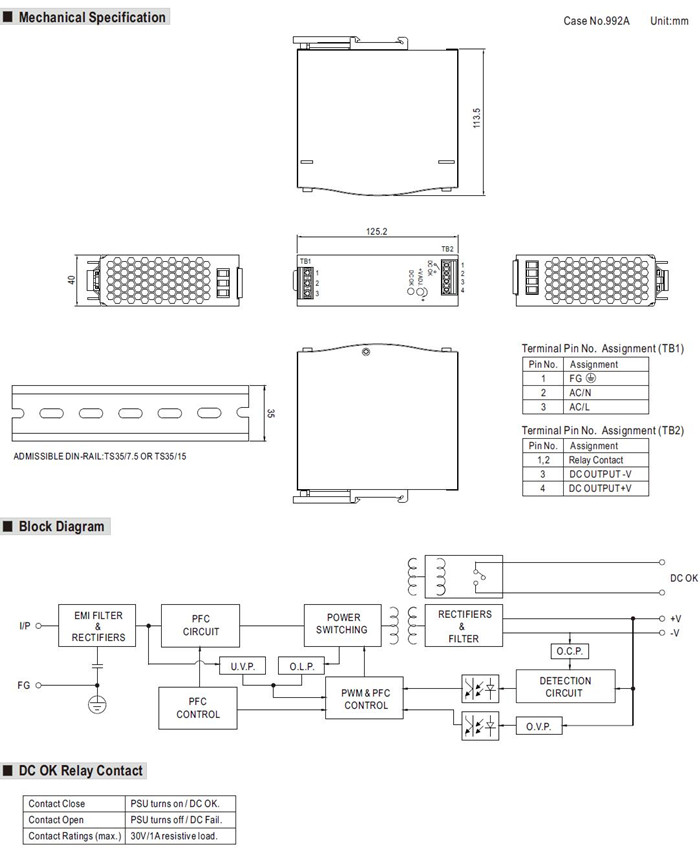

Meanwell SDR-120 Series Mechanical Diagram
