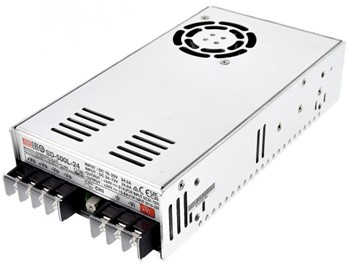

SD-500L-24
78.62

SD-500L-24

$78.62

Meanwell 500W Single Output DC-DC Converter with 24V21A0-21A504W150mVp-p23-30V

- +
Availability:In stock
SKU Meanwell SD-500L-24
Brand Meanwell
Details

SD-500L-24 Meanwell Power Supply 500W Single Output enclosed DC-DC Converter SD-500L SD-500L-12 SD-500L-48 YCICT

Meanwell SD-500L-24 Specifications

ORDER NO. SD-500L-12 SD-500L-24 SD-500L-48
OUTPUT DC VOLTAGE 12V 24V 48V
RATED CURRENT 40A 21A 10.5A
CURRENT RANGE 0-40A 0-21A 0-10.5A
RATED POWER 480W 504W 504W
RIPPLE & NOISE (max.) 150mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 11-15V 23-30V 46-60V
VOLTAGE TOLERANCE ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 500ms, 50ms at full load
INPUT VOLTAGE RANGE 19 ~ 72VDC
EFFICIENCY (Typ.) 86.00% 88.00% 89.00%
DC CURRENT (Typ.) 24.2A/19VDC 24.8A/24VDC 12A/48VDC
CURRENT (AT NO LOAD) Max. 0.2A/48VDC
INRUSH CURRENT (Typ.) 60A/48VDC
PROTECTION OVERLOAD 105 ~ 125% rated output power
Protection type : Constant current limiting, shut down o/p voltage after about 5 sec., re-power on to recover
OVER VOLTAGE 16-19V 30.8-35.2V 62-68V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE ON/OFF CONTROL Please refer to function manual
OUTPUT OK SIGNAL Open collector signal low when PSU turns on, max. sink current :10mA
ENVIRONMENT WORKING TEMP. -20 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.02%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS MTBF 1333.7K hrs min. Telcordia SR-332 (Bellcore) ; 196.3K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*50mm (L*W*H)
PACKING 1.15Kg; 12pcs/14.8Kg/0.9CUFT

Meanwell SD-500L-24 Features

l  3 years warranty

l  DC input active surge current limiting

l  Wide 4:1~2:1 DC input range (24V: 19~72VDC, 96V:72~144VDC)

l  2000VAC l/O Isolation

l  Forced air cooling by built-in DC fan with fan speed control function

l  Output OK Signal

l  Built-in remote ON-OFF control

l  Built-in remote sense function

l  Protections: Short circuit/Overload/Over voltage/Over temperature/Input polarity (by fuse)
