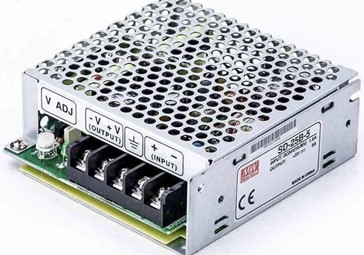

SD-25B-5
12.05
Details
Meanwell SD-25-5 Series Model Specifications
| ORDER NO. | SD-25A-5 | SD-25B-5 | SD-25C-5 | |
| OUTPUT | DC VOLTAGE | 5V | ||
| RATED CURRENT | 5A | |||
| CURRENT RANGE | 0-5A | |||
| RATED POWER | 25W | |||
| RIPPLE & NOISE (max.) | 100mVp-p | |||
| VOLTAGE ADJ. RANGE | 4.5-5.5VDC | |||
| VOLTAGE TOLERANCE | ±2.0% | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGULATION | ±0.5% | |||
| SETUP, RISE ,HOLD UP TIME | 2.5s, 50ms, ------ at full load | |||
| INPUT | VOLTAGE RANGE | A:9.2 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC | ||
| EFFICIENCY (Typ.) | 71.00% | 72.00% | 74.00% | |
| DC CURRENT | 3.2A/12V | 1.6A/24V | 0.8A/48V | |
| PROTECTION | OVERLOAD | 105 ~150% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 5.75 ~ 6.75V/10% load | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | EAC TP TC 004 approved, Design refer to LVD, AS/NZS 62368.1 | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035,heavy industry level, EAC TP TC 020 | |||
| OTHERS | MTBF | 3682.6K hrs min. Telcordia SR-332 (Bellcore) ; 528.8K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 99*97*36mm (L*W*H) | |||
| PACKING | 0.38Kg; 45pcs/17.8Kg/0.94CUFT | |||
Meanwell SD-25-5 Series Features
l 2:1 wide input range
l Protections: Short circuit/Overload/Over voltage
l 1500VAC I/O isolation
l Built-in EMI filter, low ripple noise
l 100% full load burn-in test
l Fixed switching frequency at 83KHz
l Low cost
l High reliability
l 2 years warranty
Meanwell SD-25-5 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC Module Type | SD-25B-5 |
