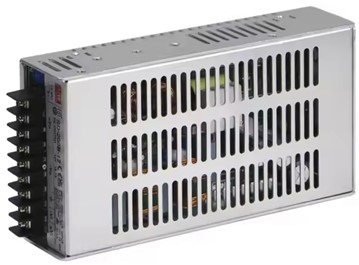

SD-200D
50.57
Details
Meanwell SD-200D Specifications
| ORDER NO. | SD-200D | ||||
| OUTPUT | DC VOLTAGE | SD-200D | 12V | 24V | 48V |
| RATED CURRENT | 40A | 16.7A | 8.4A | 4.2A | |
| CURRENT RANGE | 0-40A | 0-16.7A | 0-8.4A | 0-4.2A | |
| RATED POWER | 200W | 200.4W | 201.6W | 201.6W | |
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 4.5-5.5VDC | 11-16VDC | 23-30VDC | 43-53VDC | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 300ms, 50ms at full load | ||||
| INPUT | VOLTAGE RANGE | B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC | |||
| EFFICIENCY (Typ.) | 82.00% | 82.00% | 84.00% | 90.00% | |
| DC CURRENT (Typ.) | 3.5A/96V | 3.5A/96V | 3.5A/96V | 3.5A/96V | |
| INRUSH CURRENT (Typ.) | C:45A/48VDC D:45A/96VDC | ||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| OVER VOLTAGE | 5.75-6.75V | 16.8-20V | 31.5-37.5V | 53-65V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1approved (for SD-200C-5/12/24 type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | ||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020 | ||||
| OTHERS | MTBF | 1919.7K hrs min. Telcordia SR-332 (Bellcore) ; 280.6K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 215*115*50mm (L*W*H) | ||||
| PACKING | 1.1Kg; 12pcs/14.4Kg/0.9CUFT | ||||
Meanwell SD-200D Features
l 2 years warranty
l 2:1 wide input range
l 1500VAC I/O isolation
l 100% full load burn-in test
l Cooling by free air convection
l 24V and 48V input voltage design refer to LVD
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell SD-200D Mechanical Diagram
