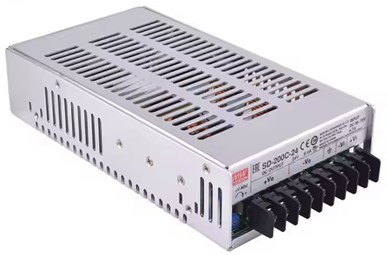

Meanwell 200W Single Output DC-DC Converter

- +
Availability:In stock
SKU Meanwell SD-200
Brand Meanwell
Details

SD-200 Meanwell Power Supply 200W Single Output enclosed Converter SD-200B SD-200C SD-200D SD-200 Series YCICT

Meanwell SD-200 Series Model Specifications

ORDER NO. SD-200B SD-200C SD-200D
OUTPUT DC VOLTAGE 5V 12V 24V 48V 5V 12V 24V 48V 5V 12V 24V 48V
RATED CURRENT 34A 16.7A 8.4A 4.2A 40A 16.7A 8.4A 4.2A 40A 16.7A 8.4A 4.2A
CURRENT RANGE 0-34A 0-16.7A 0-8.4A 0-4.2A 0-40A 0-16.7A 0-8.4A 0-4.2A 0-40A 0-16.7A 0-8.4A 0-4.2A
RATED POWER 170W 200.4W 201.6W 201.6W 200W 200.4W 201.6W 201.6W 200W 200.4W 201.6W 201.6W
RIPPLE & NOISE (max.) 100mVp-p 120mVp-p 150mVp-p 200mVp-p 100mVp-p 120mVp-p 150mVp-p 200mVp-p 100mVp-p 120mVp-p 150mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 4.5-5.5VDC 11-16VDC 23-30VDC 43-53VDC 4.5-5.5VDC 11-16VDC 23-30VDC 43-53VDC 4.5-5.5VDC 11-16VDC 23-30VDC 43-53VDC
VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0% ±2.0% ±1.0% ±1.0% ±1.0% ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 300ms, 50ms at full load
INPUT VOLTAGE RANGE B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC
EFFICIENCY (Typ.) 79.00% 82.00% 85.00% 86.00% 81.00% 84.00% 86.00% 86.00% 82.00% 82.00% 84.00% 90.00%
DC CURRENT (Typ.) 10.8A/24V 10.6A/24V 10.4A/24V 10.4A/24V 5.4A/48V 5.2A/48V 6.7A/48V 5A/48V 3.5A/96V 3.5A/96V 3.5A/96V 3.5A/96V
INRUSH CURRENT (Typ.) C:45A/48VDC D:45A/96VDC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE 5.75-6.75V 16.8-20V 31.5-37.5V 53-65V 5.75-6.75V 16.8-20V 31.5-37.5V 53-65V 5.75-6.75V 16.8-20V 31.5-37.5V 53-65V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -20 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1approved (for SD-200C-5/12/24 type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS MTBF 1919.7K hrs min. Telcordia SR-332 (Bellcore) ; 280.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*50mm (L*W*H)
PACKING 1.1Kg; 12pcs/14.4Kg/0.9CUFT

Meanwell SD-200 Series Features

l  2:1 wide input range

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  1500VAC I/O isolation

l  Cooling by free air convection

l  100% full load burn-in test

l  24V and 48V input voltage design refer to LVD

l  2 years warranty

SD-200 Meanwell Power Supply 200W Single Output enclosed Converter SD-200B SD-200C SD Series 2:1 input range YCICT

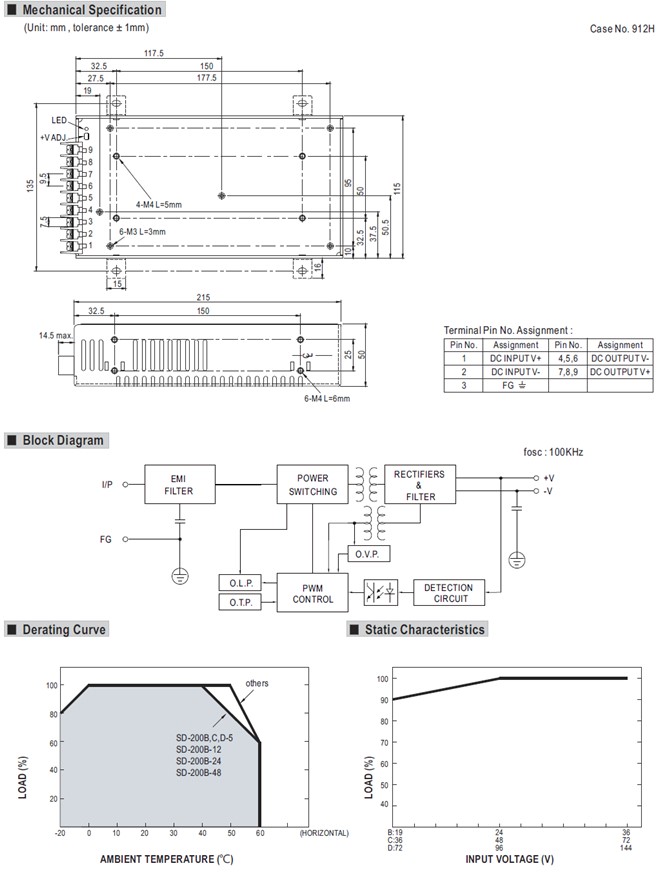

Meanwell SD-200 Series Mechanical Diagram

SD-200 Meanwell Power Supply 200W Single Output enclosed Converter SD-200B SD-200C SD-200D 2:1 input range YCICT
