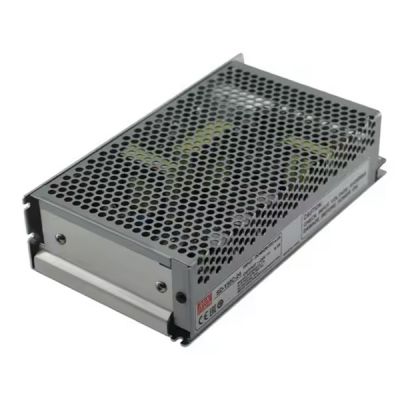

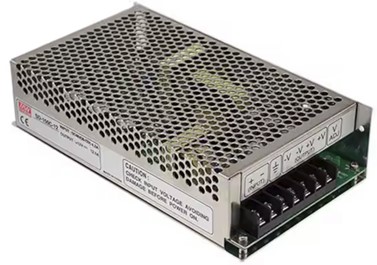

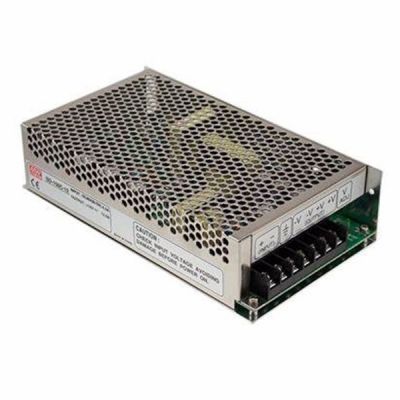

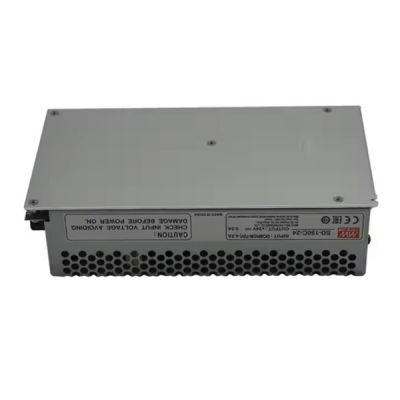

SD-150D-12
34.19
Details
Meanwell SD-150D-12 Specifications
| ORDER NO. | SD-150B-12 | SD-150C-12 | SD-150D-12 | |
| OUTPUT | DC VOLTAGE | 12V | ||
| RATED CURRENT | 12.5A | |||
| CURRENT RANGE | 0-12.5A | |||
| RATED POWER | 150W | |||
| RIPPLE & NOISE (max.) | 120mVp-p | |||
| VOLTAGE ADJ. RANGE | 11-16VDC | |||
| VOLTAGE TOLERANCE | ±1.0% | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGULATION | ±0.5% | |||
| SETUP, RISE ,HOLD UP TIME | 2s, 50ms (only D mode) at full load | |||
| HOLD UP TIME (Typ.) | 24ms (only D mode) at full load | |||
| INPUT | VOLTAGE RANGE | B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC or 85 ~ 132VAC | ||
| EFFICIENCY (Typ.) | 75.00% | 77.00% | 79.00% | |
| DC CURRENT | 8.5A/24V | 4.2A/48V | 2.1A/96V | |
| INRUSH CURRENT (Typ.) | D:22.5A/96VDC | |||
| LEAKAGE CURRENT | <0.75mA / 120VAC (SD-150D) | |||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 16.8V ~ 20V/10% LOAD | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to output load derating curve) | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | IEC/BS EN/EN 62368-1 (for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1 | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMI CONDUCTION & RADIATION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, BS EN/ENV50204, light industry level, EAC TP TC 020 | |||
| OTHERS | MTBF | 2897.06K hrs min. Telcordia SR-332 (Bellcore) ; 419.6K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 199*110*50mm (L*W*H) | |||
| PACKING | 0.86Kg; 16pcs/14.5Kg/0.95CUFT | |||
Meanwell SD-150D-12 Features
l 2 years warranty
l Low cost
l High reliability
l 2:1 wide input range
l 1500VAC I/O isolation
l Built-in EMI filter, low ripple noise
l 100% full load burn-in test
l 24V and 48V input voltage design refer to LVD
l Protections: Short circuit/Overload/Over voltage
Meanwell SD-150D-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC Module Type | SD-150D-12 |
