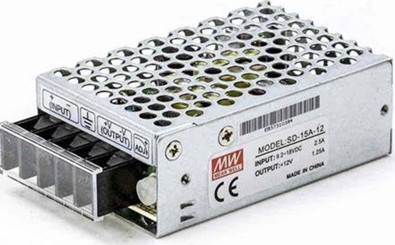

Meanwell SD-15-12 Series Model Specifications
| ORDER NO. | SD-15A-12 | SD-15B-12 | SD-15C-12 | |
| OUTPUT | DC VOLTAGE | 12V | ||
| RATED CURRENT | 1.25A | |||
| CURRENT RANGE | 0-1.25A | |||
| RATED POWER | 15W | |||
| RIPPLE & NOISE (max.) | 120mVp-p | |||
| VOLTAGE ADJ. RANGE | 10.8-13.2VDC | |||
| VOLTAGE TOLERANCE | ±1.0% | |||
| LINE REGULATION | ±0.3% | |||
| LOAD REGULATION | ±0.3% | |||
| SETUP, RISE ,HOLD UP TIME | 2.5s, 25ms,--- 12VDC/24VDC/48VDC at full load | |||
| INPUT | VOLTAGE RANGE | A: 9.2 ~18VDC B:18 ~ 36VDC C:36~72VDC | ||
| EFFICIENCY (Typ.) | 72.00% | 76.00% | 79.00% | |
| DC CURRENT (Typ.) | 1.9A/12VDC 0.9A/24VDC 0.45A/48VDC | |||
| PROTECTION | OVERLOAD | 105 ~160% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 13.8~ 16.2V | |||
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | EAC TP TC 004 approved, design refer to AS/NZS 62368.1 | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32), EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020 | |||
| OTHERS | MTBF | 3861.2K hrs min. Telcordia SR-332 (Bellcore) ; 644.2K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 78*51*28mm (L*W*H) | |||
| PACKING | 0.18Kg,60 PCS/11.8Kg | |||
Meanwell SD-15-12 Series Features
l 2 years warranty
l Low cost
l High reliability
l 2:1 wide input range
l 100% full load burn-in test
l Protections: Short circuit/Over load/voltage
l Built-in EMI filter, low ripple noise

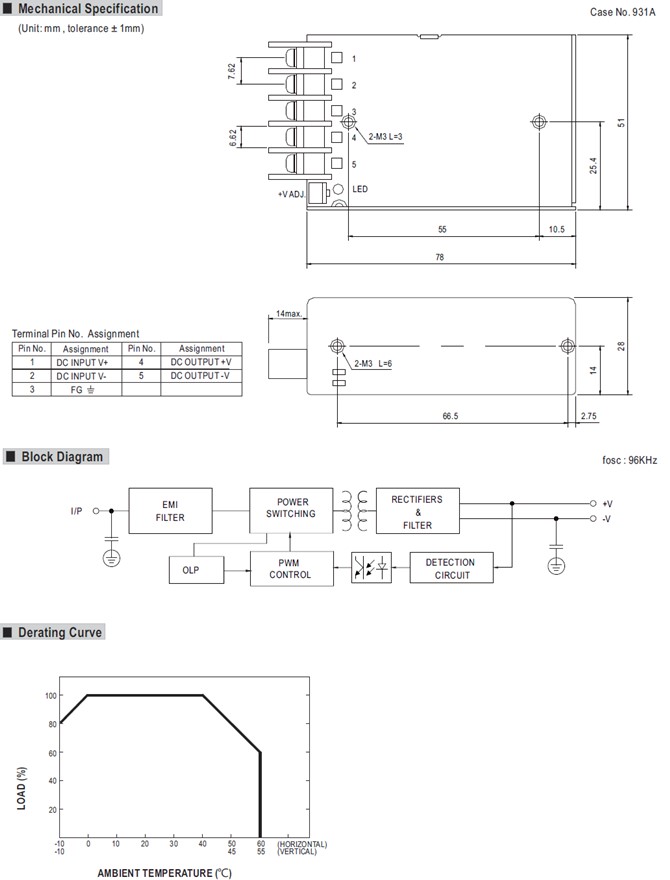

Meanwell SD-15-12 Series Mechanical Diagram
