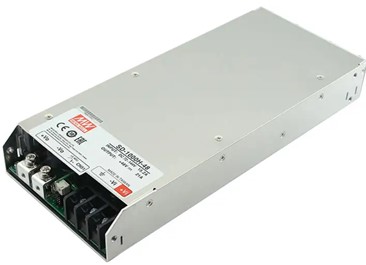

SD-1000H-12
158.68
Details
Meanwel SD-1000H-12 Specifications
| ORDER NO. | SD-1000H-12 | SD-1000H-24 | SD-1000H-48 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 60A | 40A | 21A | |
| CURRENT RANGE | 0-60A | 0-40A | 0-21A | |
| RATED POWER | 720W | 960W | 1008W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 11-15V | 23-30V | 46-60V | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 50ms at full load | |||
| INPUT | VOLTAGE RANGE | 72 ~ 144VDC | ||
| EFFICIENCY (Typ.) | 85.00% | 89.00% | 92.00% | |
| DC CURRENT (Typ.) | 11.6A/96VDC | |||
| INRUSH CURRENT (Typ.) | 100A/96VDC | |||
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power | ||
| Protection type : Constant current limiting, unit will shut down o/p voltage after about 5sec. Re-power on to recover | ||||
| OVER VOLTAGE | 16-19V | 30.8-35.2V | 62-68V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | REMOTE ON/OFF CONTROL | Please refer to function manual | ||
| OUTPUT OK SIGNAL | Open collector signal low when PSU turns on, maximum, sink current :10mA | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1 CB approved by TUV, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), EAC TP TC 020 | |||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020 | |||
| OTHERS | MTBF | 898.2K hrs min. Telcordia SR-332 (Bellcore) ; 106.7K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 295*127*41mm (L*W*H) | |||
| PACKING | 1.94Kg; 6pcs/12.6Kg/1.15CUFT | |||
Meanwel SD-1000H-12 Features
l 3 years warranty
l Output OK signal
l Built-in remote sensefunction
l 1U low profile 41 mm
l High power density 10.7w/inch³
l 2000VAC I/O Isolation
l 12V, 0.25A auxiliary output
l Built-in remote ON-OFF control
l Forced air cooling by built-in DC fan with fan speed control
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwel SD-1000H-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC Module Type | SD-1000H-12 |
