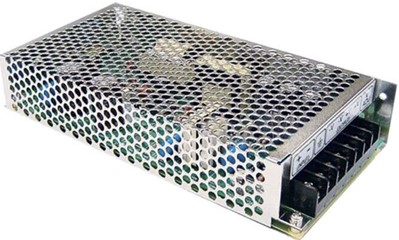

Meanwell SD-100-12 Series Model Specifications
| ORDER NO. | SD-100A-12 | SD-100B-12 | SD-100C-12 | SD-100D-12 | |
| OUTPUT | DC VOLTAGE | 12V | |||
| RATED CURRENT | 8.5A | ||||
| CURRENT RANGE | 0-8.5A | ||||
| RATED POWER | 102W | ||||
| RIPPLE & NOISE (max.) | 120mVp-p | ||||
| VOLTAGE ADJ. RANGE | 11-16VDC | ||||
| VOLTAGE TOLERANCE | ±1.0% | ||||
| LINE REGULATION | ±0.3% | ||||
| LOAD REGULATION | ±0.3% | ||||
| SETUP, RISE ,HOLD UP TIME | 2s, 50ms (only D mode) at full load | ||||
| HOLD UP TIME (Typ.) | 20ms (only D mode) at full load | ||||
| INPUT | VOLTAGE RANGE | A:9.5 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~ 144VDC or 85 ~ 132VAC | |||
| EFFICIENCY (Typ.) | 82.00% | 75.00% | 77.00% | 80.00% | |
| DC CURRENT | 10.4A/12V | 4.8A/24V | 2.4A/48V | 1.8A/96V | |
| INRUSH CURRENT (Typ.) | D:18A/96VDC | ||||
| LEAKAGE CURRENT | <0.75mA/120VAC (SD-100D) | ||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 16.8 ~ 20V/10% load | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| ENVIRONMENT | WORKING TEMP. | -15 ~ +60℃ (SD-100A), -10 ~ +60℃ (SD-100B/C/D) (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020 | ||||
| OTHERS | MTBF | 2600.2K hrs min. Telcordia SR-332 (Bellcore) ; 399.9K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 199*98*38mm (L*W*H) | ||||
| PACKING | 0.65Kg; 20pcs/13.8Kg/0.85CUFT | ||||
Meanwell SD-100-12 Series Features
l 2 years warranty
l Low cost
l High reliability
l 2:1 wide input range
l 1500VAC l/O isolation
l Built-in EMI filter, low ripple noise
l Protections: Short circuit/Overload/Over voltage
Meanwell SD-100-12 Series Mechanical Diagram
