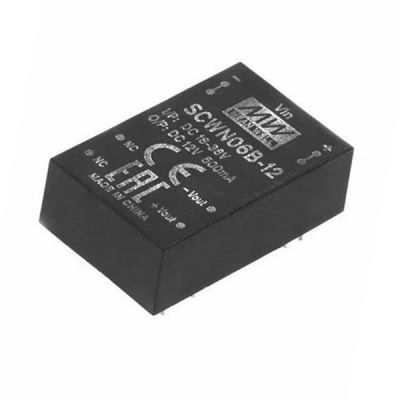

Meanwell SCWN06B Series is 6W isolated and regulated DC-DC converter. At the same time, the item highlights module type and DIP24 package. The main features are as following: international standard pins, high efficiency reaching up to 87%, wide working temperature range -40~+90℃, 3KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. What's more, the extra components models account for different input voltage 9~18V, 18~36V and 36~72V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Considering its competitive price, high reliability, and excellent quality, Meanwell SCWN06B Series is suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SCWN06B Series Encoding
| SCWN | Series Name S: Single Output D: Dual Output |
| 6 | Rated Wattage |
| B | Input Voltage (A: 9-18Vdc, B: 18-36Vdc, C: 36-72Vdc) |
| 12 | Output Voltage (3.3/5/12/15Vdc, ±5/±12/±15Vdc) |
Meanwell SCWN06B Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SCWN06B-03 | 24V (18~36V) | 4mA | 209mA | 3.3V | 1200mA | 79% | 4700μF |
| SCWN06B-05 | 5mA | 251mA | 5V | 1000mA | 86% | 4700μF | |
| SCWN06B-12 | 7mA | 291mA | 12V | 500mA | 86% | 4700μF | |
| SCWN06B-15 | 8mA | 291mA | 15V | 400mA | 82% | 4700μF | |
| INPUT | VOLTAGE RANGE | A: 9~18Vdc, B: 18~36Vdc, C: 36~72Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 12Vin models: 25Vdc; 24Vin models: 50Vdc; 48Vin models: 100Vdc | ||||||
| FILTER | Pi type | ||||||
| PROTECTION (Typ.) | Fuse recommended. 12Vin models: 1.6A Fast-Acting Type, 24Vin models: 1A Fast-Acting Type, 48Vin models: 0.5A Fast-Acting Type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 6W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | ±0.5% | ||||||
| LOAD REGULATION | Single output models:±0.5%, Dual output models:±1% | ||||||
| SWITCHING FREQUENCY | 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 120~250% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc | ||||||
| Shutdown voltage 12Vin: 8Vdc, 24Vin: 16Vdc, 48Vin: 31Vdc 5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin |
|||||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+100℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0~90℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃max. | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 250pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | NA | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class A | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2, 3A/m | |||||
| OTHERS | MTBF | 1800Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 31.8*20.3*10.2mm (1.25*0.8*0.4 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 12.4g ; 10pcs/per tube, 600pcs/60 tube/per carton | ||||||
Meanwell SCWN06B Series Features
l Protections: Short circuit (Continuous)/Overload/Input under voltage
l Comply to BS EN/EN55032 radiated Class A without additional components
l Operating temperature range -40~+90℃
l DIP24 package with industry standard pinout
l No minimum load required
l 3 years warranty
l 3KVDC I/O isolation
l High efficiency up to 87%
l 2:1 wide input range
Meanwell SCWN06B Series Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Wireless network
l Telecom/Datacom system
l Industrial control facility
Meanwell SCWN06B Series Mechanical Diagram
