Meanwell 6W DIP Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell SCWN06A
Brand Meanwell
Details

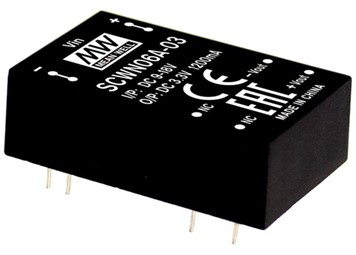

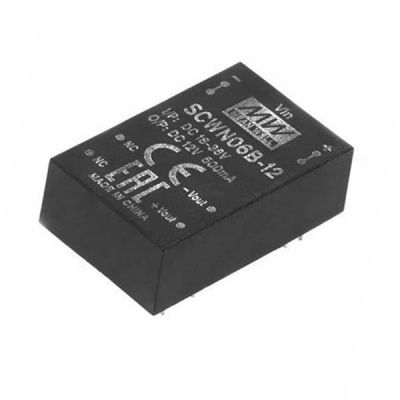

Meanwell SCWN06A Series is 6W isolated and regulated DC-DC converter. The product outstands module type and DIP24 package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 87%, wide working temperature range -40~+90℃, 3KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. Apart from them, the extra components models account for different input voltage 9~18V, 18~36V and 36~72V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Considering its competitive price, high reliability, and excellent quality, Meanwell SCWN06A Series is suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

SCWN06A Meanwell Power Supply 6W DIP Regulated DC-DC Converter SCWN06A-03 SCWN06A-05 SCWN06A-12 SCWN06A-15 YCICT

Meanwell SCWN06A Series Encoding

SCWN Series Name S: Single Output D: Dual Output
6 Rated Wattage
A Input Voltage (A: 9-18Vdc, B: 18-36Vdc, C: 36-72Vdc)
12 Output Voltage (3.3/5/12/15Vdc, ±5/±12/±15Vdc)

Meanwell SCWN06A Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SCWN06A-03 12V (9~18V) 5mA 429mA 3.3V 1200mA 77% 4700μF
SCWN06A-05 5mA 514mA 5V 1000mA 81% 4700μF
SCWN06A-12 10mA 600mA 12V 500mA 83% 4700μF
SCWN06A-15 15mA 600mA 15V 400mA 84% 4700μF
INPUT VOLTAGE RANGE A: 9~18Vdc, B: 18~36Vdc, C: 36~72Vdc
SURGE VOLTAGE (100ms max.) 12Vin models: 25Vdc; 24Vin models: 50Vdc; 48Vin models: 100Vdc
FILTER Pi type
PROTECTION (Typ.) Fuse recommended. 12Vin models: 1.6A Fast-Acting Type, 24Vin models: 1A Fast-Acting Type, 48Vin models: 0.5A Fast-Acting Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 6W
RIPPLE & NOISE 50mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY 100KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 120~250% rated output power
Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc
Shutdown voltage 12Vin: 8Vdc, 24Vin: 16Vdc, 48Vin: 31Vdc
5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+90 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40~+100, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0~90)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260max.
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:3KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 250pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) NA
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V (e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 1800Khrs MIL-HDBK-217F (25)
DIMENSION 31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 12.4g ; 10pcs/per tube, 600pcs/60 tube/per carton

Meanwell SCWN06A Series Features

l  DIP24 package with industry standard pinout

l  2:1 wide input range

l  Operating temperature range -40~+90℃

l  No minimum load required

l  Comply to BS EN/EN55032 radiated Class A without additional components

l  High efficiency up to 87%

l  Protections: Short circuit (Continuous)/Overload/Input under voltage

l  3KVDC I/O isolation

l  3 years warranty

SCWN06A Meanwell Power Supply 6W DIP package DC-DC Converter SCWN06A-03 SCWN06A-05 SCWN06A-12 SCWN06A-15 YCICT

Meanwell SCWN06A Series Applications

l  Telecom/Datacom system

l  Wireless network

l  Industrial control facility

l  Instrument

l  Analyzer

l  Detector

l  Data switch

SCWN06A Meanwell Power Supply 6W DIP DC-DC Regulated Converter SCWN06A-03 SCWN06A-05 SCWN06A-12 SCWN06A-15 YCICT

Meanwell SCWN06A Series Mechanical Diagram
