SCWN03E
5.14
Details

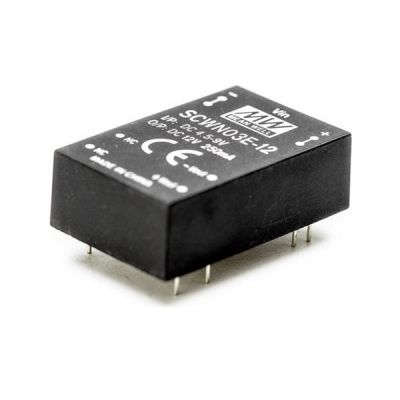

Meanwell SCWN03E Series is 3W isolated and regulated DC-DC converter. The product highlights module type and DIP24 package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 87%, wide working temperature range -40~+90℃, 3KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. What’s more, the additional components,models account for different input voltage: 4.5~9V, 9~18V, 18~36V and 36~72V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5/±12/±15 for dual outputs. Considering its competitive cost, high quality, and excellent reliability, Meanwell SCWN03E Series is suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SCWN03E Series Encoding
| SCWN | Series Name S: Single Output D: Dual Output |
| 3 | Rated Wattage |
| E | Input Voltage (E: 4.5-9Vdc, A: 9-18Vdc, B: 18-36Vdc, C: 36-72Vdc) |
| 12 | Output Voltage (3.3/5/12/15Vdc, ±5/±12/±15Vdc) |
Meanwell SCWN03E Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SCWN03E-03 | 5V (4.5~9V) | 15mA | 550mA | 3.3V | 600mA | 73% | 2200μF |
| SCWN03E-05 | 15mA | 779mA | 5V | 600mA | 78% | 2200μF | |
| SCWN03E-12 | 18mA | 750mA | 12V | 250mA | 80% | 2200μF | |
| SCWN03E-15 | 18mA | 750m | 15V | 200mA | 81% | 2200μF | |
| INPUT | VOLTAGE RANGE | E: 4.5~9Vdc , A: 9~18Vdc , B: 18~36Vdc , C: 36~72Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 5Vin models : 10Vdc ; 12Vin models : 25Vdc ; 24Vin models : 50Vdc ; 48Vin models : 100Vdc | ||||||
| FILTER | Pi type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| PROTECTION (Typ.) | Fuse recommended. 5Vin models: 1.5A Fast-Acting Type, 12Vin models: 0.8A Fast-Acting Type, 24Vin models: 0.5A Fast-Acting Type, 48Vin models: 250mA Fast-Acting Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 3W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | ±0.5% | ||||||
| LOAD REGULATION | Single output models:±0.5%, Dual output models:±1% | ||||||
| SWITCHING FREQUENCY | 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 120~250% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage 5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc | ||||||
| Shutdown voltage 5Vin: 4.2Vdc, 12Vin: 8Vdc, 24Vin: 16Vdc, 48Vin: 31Vdc 5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin |
|||||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+105℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03%/℃ (0~85℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1~3sec./260℃ max. | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P: 3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 250pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | NA | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class A | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2, 3A/m | |||||
| OTHERS | MTBF | 2500Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 31.8*20.3*10.2mm (1.25*0.8*0.4 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 12.3g ; 10pcs/per tube, 600pcs/60 tube/per carton | ||||||
Meanwell SCWN03E Series Features
l DIP24 package with industry standard pinout
l 2:1 wide input range
l Operating temperature range -40~+90℃
l No minimum load required
l Comply to BS EN/EN55032 radiated Class A without additional components
l High efficiency up to 87%
l Protections: Short circuit (Continuous)/Overload/Input under voltage
l 3KVDC I/O isolation
l 3 years warranty
Meanwell SCWN03E Series Applications
l Telecom/datacom system
l Wireless network
l Industrial control facility
l Instrument
l Analyzer
l Detector
l Data switch
Meanwell SCWN03E Series Mechanical Diagram
