SCW20C-15
18.57

SCW20C-15

$18.57

Meanwell 20W DIP Package DC-DC Regulated Converter with 48V15mA479mA15V1333mA

- +
Availability:In stock
SKU Meanwell SCW20C-15
Brand Meanwell
Details

Meanwell SCW20C-15 is 20W isolated and regulated DC-DC converter with 48V15mA479mA15V1333mA. Meanwhile, the model features module type and DIP24 package. The main features are as following: international standard pins, high efficiency up to 89%, wide working temperature range -40~+80℃,1.5KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without extra components, continuous-mode short circuit protection, etc. What's more, the additional components models account for different input voltage 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 5V/12V/15V for single output. As a result of its low cost, high reliability, and excellent quality, Meanwell SCW20C-15 is suitable for all kinds of systems, such as industrial control,telecommunication field, distributed power architecture, and so on.

SCW20C-15 Meanwell Power Supply 20W DC-DC Converter SCW20C SCW20C-05 SCW20C-12 SCW20 DIP package low cost YCICT

Meanwell SCW20C-15 Encoding

SCW Series Name
20 Rated Wattage
C Input Voltage ((A: 9-18Vdc, B: 18-36Vdc, C: 36-75Vdc)
15 Output Voltage (5/12/15Vdc)

Meanwell SCW20C-15 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SCW20C-05 Normal 48V (36~75V) 45mA 484mA 5V 4000mA 86% 1000μF
SCW20C-12 15mA 479mA 12V 1666mA 87% 220μF
SCW20C-15 15mA 479mA 15V 1333mA 89% 220μF
INPUT VOLTAGE RANGE A: 9~18Vdc , B: 18~36Vdc , C: 36~75Vdc
FILTER Pi type
PROTECTION Fuse recommended. 12Vin models: 4A Slow-Blow Type, 24Vin models: 2A Slow-Blow Type,
48Vin models: 1A Slow-Blow Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±2%
RATED POWER 20W
RIPPLE & NOISE 80mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SWITCHING FREQUENCY 400KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 120~190% rated output power
Protection type : Recovers automatically after fault condition is removed
FUNCTION REMOTE CONTROL Power ON: R.C. ~ -Vin > 2.5VDC or open ; Power OFF: R.C. ~ -Vin < 0.8VDC or short
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+80 (Refer to "Derating Curve")
CASE TEMPERATURE +110 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +105, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03% /(0 ~ 85)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260max.
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 1200pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) NA
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 224Khrs MIL-HDBK-217F (25)
DIMENSION 31.8*20.3*12.2mm (1.25*0.8*0.48 inch)
CASE MATERIAL Five-sided shield metal case
PACKING 18.5g ; 15pcs/per tube, 750pcs/50 tube/per carton

Meanwell SCW20C-15 Features

l  3 years warranty

l  2:1 wide input range

l  High efficiency up to 89%

l  1.5KVDC I/O isolation

l  Remote ON/OFF control

l  No minimum load required

l  DIP24 package with industry standard pinout

l  Protections: Short circuit (Continuous)/Overload

l  Operating temperature range -40~+80℃

l  Comply to BS EN/EN55032 radiated Class A without additional components

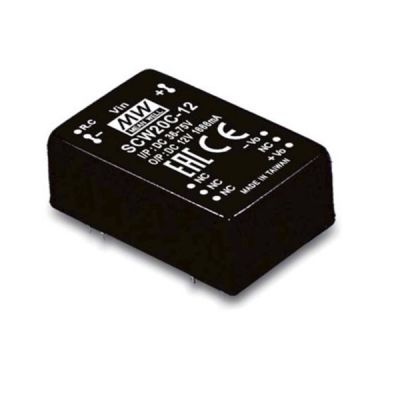

SCW20C-15 Meanwell Power Supply 20W 48V DC-DC Converter SCW20C SCW20C-05 SCW20C-12 SCW20 DIP package low cost YCICT

Meanwell SCW20C-15 Applications

l  Instrument

l  Analyzer

l  Detector

l  Data switch

l  Wireless network

l  Telecom/Datacom system

l  Industrial control facility

SCW20C-15 Meanwell Power Supply 20W 48V Regulated DC-DC Converter SCW20C SCW20C-05 SCW20C-12 SCW20 DIP package YCICT

Meanwell SCW20C-15 Mechanical Diagram

SCW20C-15 Meanwell Power Supply 20W 48V DC-DC Converter SCW20C SCW20C-05 SCW20C-12 SCW20 DIP package low cost YCICT
