SCW12-05
4.11

SCW12-05

As low as $4.11

Meanwell 12W DC-DC Regulated Single Output Converter

- +
Availability:In stock
SKU Meanwell SCW12-05
Brand Meanwell
Details

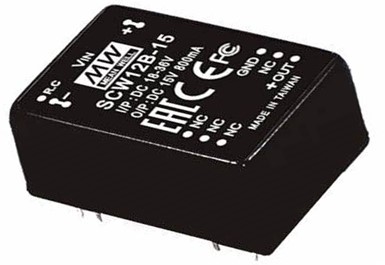

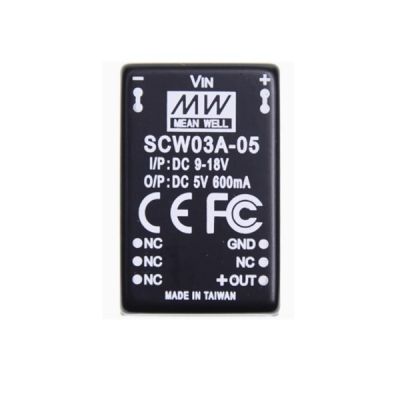

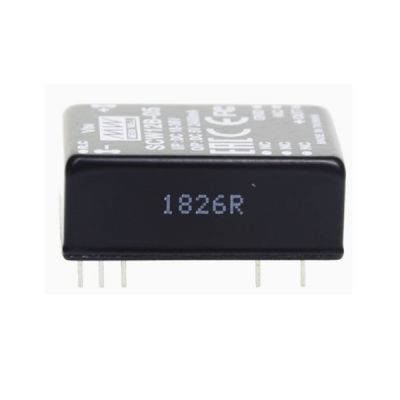

SCW12-05 Meanwell Power Supply 12W DC-DC Regulated Single Output Converter SCW12A-05 SCW12B-05 SCW12C-05 low cost YCICT

Meanwell SCW12-05 Series Model Specifications

ORDER NO.   SCW12A-05 SCW12B-05 SCW12C-05
OUTPUT DC VOLTAGE 5V
CURRENT RANGE 480~2400mA
RATED POWER 12W
RIPPLE&NOISE (max.) 50mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
VOLTAGE ACCURACY ±2.0%
SWITCHING FREQUENCY 400KHz min.
EXTERNAL CAPACITANCE LOAD (max.) 1000uF
INPUT VOLTAGE RANGE A: 9~18VDC B: 18~36VDC C: 36~72VDC
EFFICIENCY (Typ.) 82.00% 83.00% 84.00%
DC CURRENT Full load A: 1245mA B: 625mA C: 320mA
No load A: 70mA B: 35mA C: 25mA
FILTER Pi network
PROTECTION Fuse recommended
PROTECTION OVERLOAD 110~180% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with short circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -40~+71 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40~+105, 10~95% RH
TEMP. COEFFICIENT ±0.05%/ (0~50)
VIBRATION 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE 220pF max.
EMC EMISSION Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 600Khrs min. MIL-HDBK-217F(25)
DIMENSION 31.8*20.3*12.2mm or 1.25"*0.80"*0.48" inch (L*W*H)
PACKING 17.5g ; 15pcs/per tube, 750pcs/50 tube/per carton

Meanwell SCW12-05 Series Features

l  2:1 wide input range

l  1500VDC I/O isolation

l  Built-in remote ON/OFF control

l  Built-in EMI filter

l  Protections: Short circuit/Overload

l  Cooling by free air convection

l  Five-sided shield metal case

l  100% full load burn-in test

l  Low cost/High reliability

l  Modified models available: output 2.5V/3.3V

l  2 years warranty

SCW12-05 Meanwell Power Supply 12W DC-DC Regulated Single Output Converter SCW12A-05 SCW12B-05 SCW12C-05 YCICT

Meanwell SCW12-05 Series Mechanical Diagram

SCW12-05 Meanwell Power Supply 12W DC-DC Regulated Single Output Converter SCW12A-05 SCW12B-05 SCW12C-05 DIP YCICT
