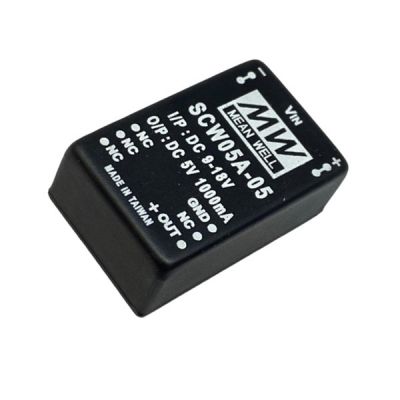

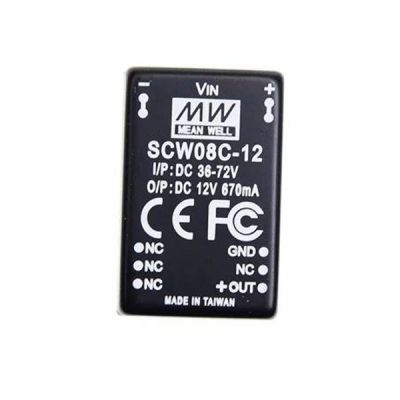

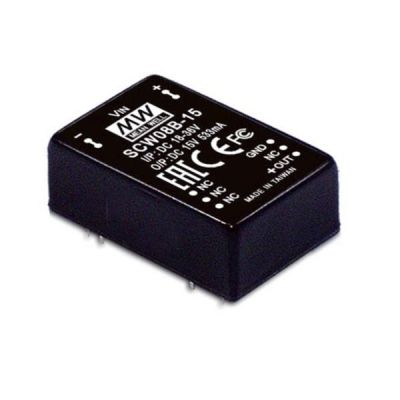

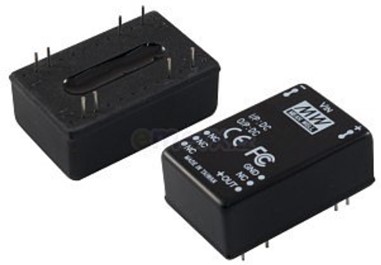

SCW08A-05
14.11
Details
Meanwell SCW08A-05 Specifications
| ORDER NO. | SCW08A-05 | SCW08B-05 | SCW08C-05 | |
| OUTPUT | DC VOLTAGE | 5V | ||
| CURRENT RANGE | 320~1600mA | |||
| RATED POWER | 8W | |||
| RIPPLE&NOISE (max.) | 50mVp-p | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGULATION | ±0.5% | |||
| VOLTAGE ACCURACY | ±2.0% | |||
| SWITCHING FREQUENCY | 50KHz min. | |||
| EXTERNAL CAPACITANCE LOAD (max.) | 1000uF | |||
| INPUT | VOLTAGE RANGE | A: 9~18VDC B: 18~36VDC C: 36~72VDC | ||
| EFFICIENCY (Typ.) | 75.00% | 78.00% | 78.00% | |
| DC CURRENT | Full load A: 888mA B: 426mA C: 215mA | |||
| No load A: 50mA B: 25mA C: 15mA | ||||
| FILTER | Pi network | |||
| PROTECTION | Fuse recommended | |||
| PROTECTION | OVERLOAD | 110~250% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | All output equipped with short circuit | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -40~+71℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40~+105℃, 10~95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) | |||
| VIBRATION | 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| ISOLATION CAPACITANCE | 250pF max. | |||
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 900khrs min. MIL-HDBK-217F(25℃) | ||
| DIMENSION | 31.8*20.3*12.2mm or 1.25"*0.80"*0.48" inch (L*W*H) | |||
| PACKING | 17.5g ; 15pcs/per tube, 750pcs/50 tube/per carton | |||
Meanwell SCW08A-05 Features
l 2:1 wide input range
l 1500VDC I/O isolation
l Built-in EMI filter
l Cooling by free air convection
l Five-sided shield metal case
l 100% full load burn-in test
l Low cost/High reliability
l 2 years warranty
l Protections: Short circuit/Overload
Meanwell SCW08A-05 Mechanical Diagram
