SBTN01M
3.89
Details

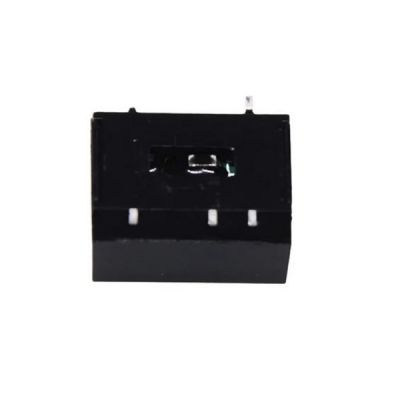

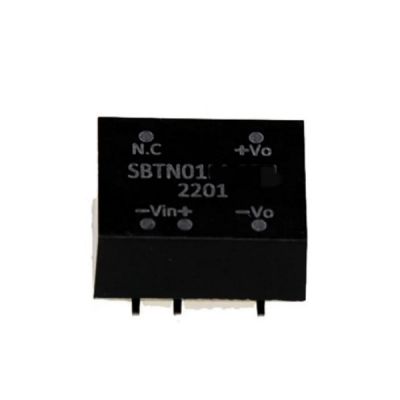

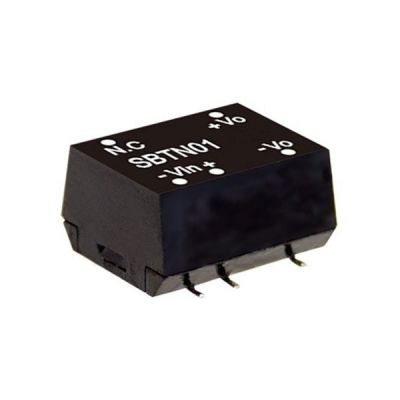

Meanwell SBTN01M Series is 1W isolated unregulated DC- DC converter. At the same time, the product stands out with module type and SMD package. The main features are as following: international standard pins, high efficiency reaching up to 84%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. In addition, SBTN01M models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/9V/12V/15V for single output. Considering its longevity, excellent quality and high reliability, Meanwell SBTN01M Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SBTN01M Series Encoding
| SBTN | Series Name |
| 01 | Rated Wattage |
| M | Input voltage (L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc ) |
| 12 | Output Voltage (5/9/12/15/Vdc |
| SC | Performance Difference |
| Blank | -40~ +90℃ working te mperature with max. 1 second short protection |
| SC | -40~+ 105℃ working temperature with continuous short protection |
Meanwell SBTN01M Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SBTN01M-05 | 12V (10.8~13.2V) | 12mA | 112mA | 5V | 20~200mA | 79% | 220μF |
| SBTN01M-09 | 14mA | 107mA | 9V | 11.1~111mA | 78% | 220μF | |
| SBTN01M-12 | 12mA | 102mA | 12V | 8.4~84mA | 84% | 220μF | |
| SBTN01M-15 | 12mA | 102mA | 15V | 6.7~67mA | 83% | 220μF | |
| INPUT | VOLTAGE RANGE | L: 4.5~5.5Vdc, M: 10.8~13.2Vdc, N: 21.6~26.4Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 5Vin models: 9Vdc; 12Vin models: 16Vdc; 24Vin models: 30Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 5Vin models: 750mA Slow-Blow Type, 12Vin models: 300mA Slow-Blow Type, 24Vin models: 150mA Slow-Blow Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2.0% | |||||
| RATED POWER | 1W | ||||||
| RIPPLE & NOISE | 75mVp-p | ||||||
| LINE REGULATION | 1.2% for 1% input variation | ||||||
| LOAD REGULATION | ±8% | ||||||
| SWITCHING FREQUENCY (Typ.) | 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Standard model: 0.5 second max. Optional models (SC-suffix): Continuous | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | Standard model: -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03%/℃ (0~85℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 10sec./240℃max. | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1 (Except for 9V output models), EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 80pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | N/A | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class B | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air ; Level 2,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV at power | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | |||||
| OTHERS | MTBF | 880Khrs min. MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 12.9*10.9*7.1mm (0.50*0.43*0.28 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | Standard : 1.1g ; 38pcs/per tube, 4560pcs/120 tube/per carton Optional : 1.1g ; 500pcs/per reel, 2500pcs/5 reel/per carton |
||||||
Meanwell SBTN01M Series Features
l Low cost
l 3 years warranty
l 1.5KVDC I/O isolation
l Optional reel packing
l High efficiency up to 84%
l Protection: Short circuit
l Operating temperature range -40~ +90℃
l SMD package with industry standard pinout
l Comply to BS EN/EN55032 radiated Class B without additional components
Meanwell SBTN01M Series Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Telecom/datacom system
l Wireless network
l Industrial control facility
Meanwell SBTN01M Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
